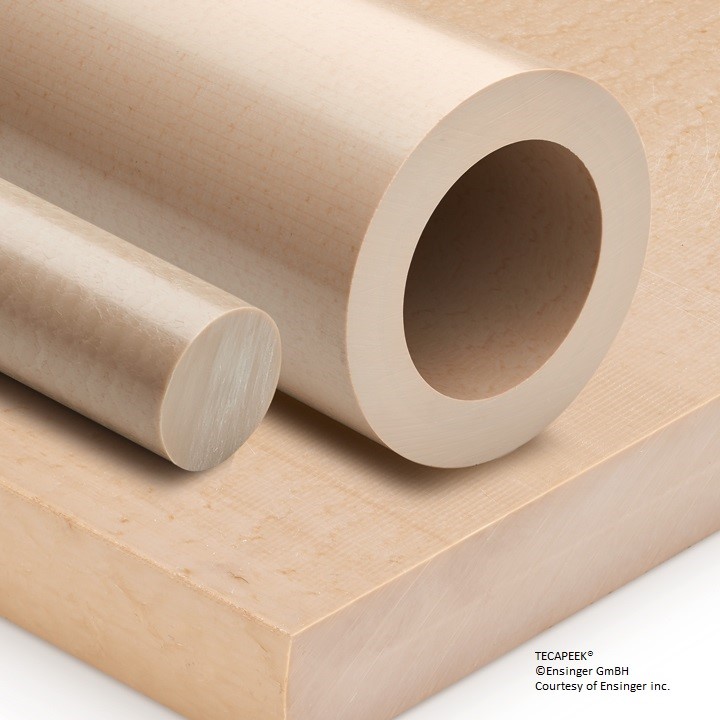

TECAPEEK® natural polyetheretherketone
Polyetheretherketone (PEEK) - TECAPEEK natural is a high performance, high temperature, semi crystalline thermoplastic manufactured by Ensinger and may use Victrex® PEEK 450 or Solvay Ketaspire® KT-820 polymer. The most well known and important member of the polyaryletherketone group combines excellent wear, and very good mechanical properties, even under thermal load. Outstanding chemical resistance and a high operating temperature (up to 500°F) round out its profile, and make TECAPEEK an almost universally appropriate material for highly stressed parts.
Its excellent dimensional stability combined with high creep stability, supports the suitability of PEEK for the most sophisticated machined parts.
As with all Ensinger PEEK materials, we can confirm that TECAPEEK natural meets the limitations imposed by RoHS Directive 2011/65/EU Restriction of Hazardous Substances in electrical and electronic equipment.
Facts
PEEK (Polyetheretherketone)
Color
beige opaque
Alternative colors available:
black
Density
1.31 g/cm3
Features
- Excellent chemical resistance
- High thermal resistance
- good heat deflection temperature
- Good machinability
- Very good slide and wear properties
- Hydrolysis and superheated steam resistant
Industries
Chemical plant engineering
Semiconductor technology
Food engineering
Medical technology
Automotive industry
Process engineering
Mechanical engineering
Show/Hide Mechanical Properties
| Description | value | unit | condition |
test method |
| modulus of elasticity (tensile test) | 650,000 | psi | 1% Sec, 73 °F | ASTM D 638 |
| Tensile strength at yield | 16000 | psi | @ 73 °F | ASTM D 638 |
| Tensile strength at break | 9000 | psi | @ 73 °F | ASTM D 638 |
| Elongation at yield (tensile test) | 4.9 | % | @ 73 °F | ASTM D 638 |
| Elongation at break (tensile test) |
> 30 | % | @ 73 °F | ASTM D 638 |
| Flexural strength | 26,000 | psi | @ 73 °F | ASTM D 790 |
| Modulus of elasticity (flexural test) |
600,000 | psi | @ 73 °F | ASTM D 790 |
| Compression strength | 20,000 | psi | @ 73 °F 10% strain |
ASTM D 695 |
| Compression strength | 16,000 | psi | @ 73 °F 5% strain |
ASTM D 695 |
| Compression strength | 3,400 | psi | @ 73 °F 1% strain |
ASTM D 695 |
| Compression modulus | 493,000 | psi | @ 73 °F | ASTM D 695 |
| Notched impact strength (Izod) | 0.90 | ft-lbs/in | @ 73 °F | ASTM D 256 |
| Rockwell hardness | 100 | M Scale | ASTM D 785 | |
| Rockwell hardness | 125 | R Scale | ASTM D 785 | |
| Shore hardness | 88 | D Scale | ASTM D 2240 | |
| Coefficient of friction | 0.20 | @ 68 °F Static , 40 psi |
ASTM D 3702 | |
| Coefficient of friction | .25 | @ 68 °F, Dynamic 40 psi 50 fpm |
ASTM D 3702 | |
| Wear (K) factor | 200x 10-10 | in³-min/ft-lbs-hr | 40 psi, 50 fpm | ASTM D 3702 |
Show/Hide Thermal Properties
| Description | value | unit | condition |
test method |
| Melting temperature | 633 | |||
| Deflection temperature | 320 | °F | @264 psi | ASTM D 648 |
| Service temperature | 480 | °F | Long Term | |
| Service temperature | 572 | °F | short term | |
| Thermal expansion (CLTE) | 2.7 | *10-5 in/in/°F | 73 F to 140 F | ASTM E 831 |
| Thermal expansion (CLTE) | 2.82 | *10-5 in/in/°F | 73 F to 212 F | ASTM E 831 |
| Thermal expansion (CLTE) | 3.35 | *10-5 in/in/°F | 212 F to 302 F | ASTM E 831 |
| Thermal conductivity | 2.01 | BTU-in/hr-ft2 -°F | ISO 22007-4:2008 |
Show/Hide Electrical Properties
| Description | value | unit | condition |
test method |
| surface resistivity | 1.0*1016 | Ω/square | ASTM D 257 | |
| volume resistance | 4.9*1016 | Ω*cm | @ 73 °F | ASTM D 149 |
| Dielectric strength | 630 | V/mil | 0.1" thick IEC 60243-1 | |
| Dissipation factor | 0.003 | @ 73 °F, 1 MHz | DIN IEC 60250 | |
| Dielectric constant | 2.8 | @ 73 °F, 1 MHz | DIN IEC 60250 |
Show/Hide Other Properties
| Description | value | unit | condition |
test method |
| Limiting PV | 69000 | psi-fpm | ASTM D 3702 | |
| Moisture absorption | 0.45 | % | @ saturation, 73 °F | DIN EN ISO 62 |
| Moisture absorption | 0.03 | % | @ 24 hrs, 73 °F | ASTM D 570 |
| Flammability (UL94) | V0 | |||
| Flammability | pass | 3 mm | FAR 25.853 |
