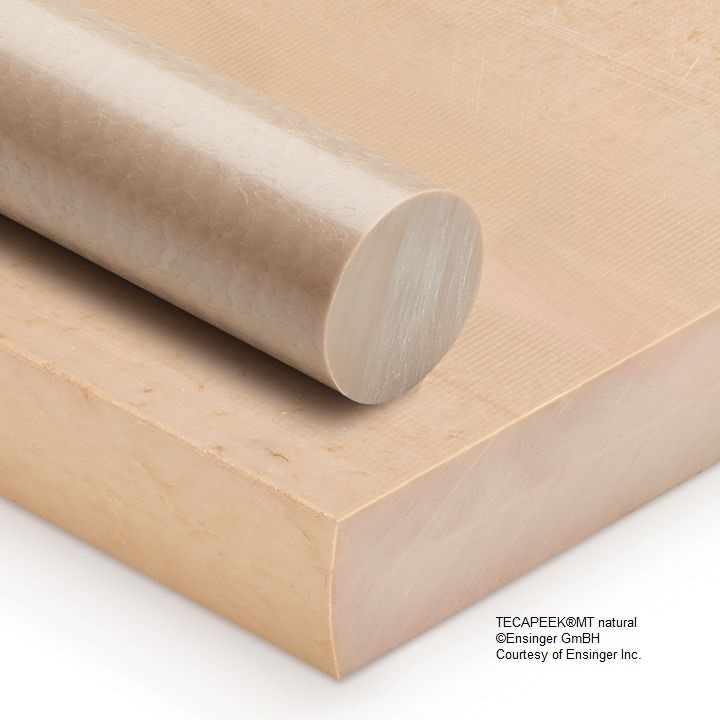

TECAPEEK® MT natural polyetheretherketone
Medical PEEK natural is suitable for use in medical applications and combines the excellent property profile of standard PEEK with requirements for biocompatibility. Victrex® PEEK polymer is used for these materials and processed in compliance with the relevant product quality requirements for use in medical applications. The respective stock shapes are tested for their biocompatibility according to ISO 10993, and show exceptional resistance to repeated steam autoclaving without loss of dimensional stability or physical properties.
In addition, TECAPEEK MT natural is tested according to USP Class VI. TECAPEEK MT can be ordered in a wide range of color options and dimensions. TECAPEEK MT XRO is made with a contrast additive, that makes it suitable for minimally invasive surgical procedures as an X-ray opaque material.
Facts
PEEK (Polyetheretherketone)
Color
beige opaque
Alternative colors available:
black
Density
1.31 g/cm3
Features
- excellent chemical resistance
- very good stress cracking resistance
- high creep resistance
- hydrolysis and superheated steam resistant
- good machinability
- resistance against high energy radiation
- good slide and wear properties
- very good sterilisable
Industries
mechanical engineering
pharmaceutical industry
medical technology
Show/Hide Mechanical Properties
| Description | value | unit | condition | test method |
| Modulus of elasticity (tensile test) | 650,000 | psi | 1% Sec, 73 °F | ASTM D 638 |
| Tensile strength at yield | 16,000 | psi | @ 73 °F | ASTM D 638 |
| Tensile strength at break | 8,900 | psi | @ 73 °F | ASTM D 638 |
| Elongation at yield (tensile test) | 4.9 | % | @ 73 °F | ASTM D 638 |
| Elongation at break (tensile test) | 30 | % | @ 73 °F | ASTM D 638 |
| Flexural strength | 26,000 | psi | @ 73 °F | ASTM D 790 |
| Modulus of elasticity (flexural test) | 600,000 | psi | @ 73 °F | ASTM D 790 |
| Compression strength | 20,000 | psi | @ 73 °F 10% strain |
ASTM D 695 |
| Compression modulus | 493,000 | psi | @ 73 °F | ASTM D 695 |
| Notched impact strength (Izod) | 0.95 | ft-lbs/in | @ 73 °F | ASTM D 256 |
| Rockwell hardness | 99 | M Scale | ASTM D 785 | |
| Coefficient of friction | 0.20 | @ 68 °F Static, 40 psi |
ASTM D 3702 | |
| Coefficient of friction | 0.25 | @ 68 °F Dynamic, 40 psi 50 fpm |
ASTM D 3702 | |
| Wear (K) factor | 200 | *10-10 in3 -min/ft-lb-hr | 40 psi, 50 fpm | ASTM D 3702 |
Show/Hide Thermal Properties
| Description | value | unit | condition | test method |
| Melting temperature | 633 | °F | ||
| Deflection temperature | 320 | °F | @ 264 psi | ASTM D 648 |
| Service temperature | 480 | °F | Long Term | |
| Service temperature | 572 | °F | short term | |
| Thermal expansion (CLTE) | 2.5 | *10-5 in/in/°F | < Tg, along flow | DIN EN ISO 11359-1;2 |
| Thermal conductivity | 2.01 | BTU-in/hr-ft2 -°F | ISO 22007-4:2008 |
Show/Hide Electrical Properties
| Description | value | unit | condition | test method |
| Surface resistivity | 1.0*1016 | Ω/square | ASTM D 257 | |
| Volume resistance | 4.9*1016 | Ω*cm | @ 73 °F | ASTM D 149 |
| Dielectric strength | 630 | V/mil | 0.1" thick IEC 60243-1 | |
| Dissipation factor | 0.003 | @ 73 °F, 1 MHz | DIN IEC 60250 | |
| Dielectric constant | 2.8 | @ 73 °F, 1 kHz | DIN IEC 60250 |
Show/Hide Other Properties
| Description | value | unit | condition | test method |
| Limiting PV | 69000 | psi-fpm | ASTM D 3702 | |
| Moisture absorption | 0.45 | % | @ saturation, 73 °F | DIN EN ISO 62 |
| Moisture absorption | 0.02 | % | @ 24 hrs, 73 °F | ASTM D 570 |
| Flammability (UL94) | V0 |
