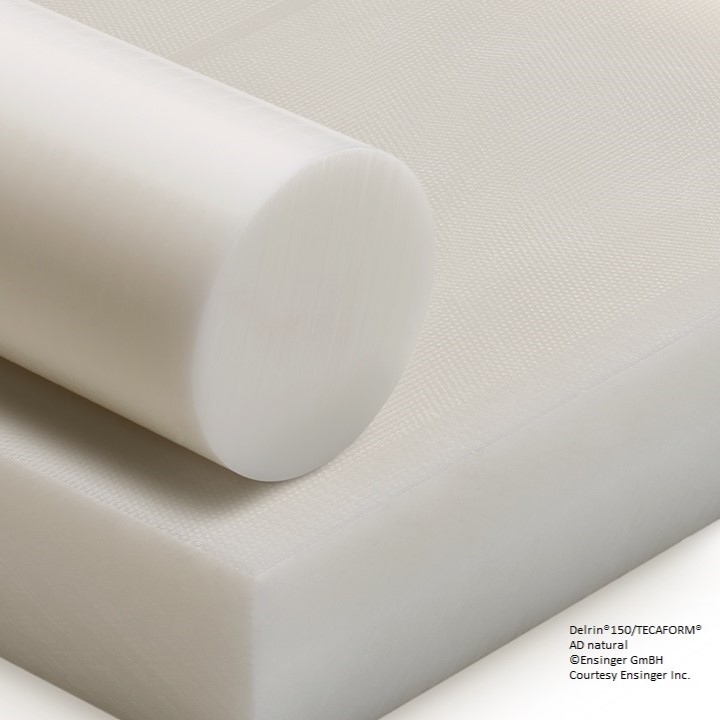

DELRIN® 150 Series Natural (TECAFORM® AD)
Delrin® 150 is a homopolymer acetal that is manufactured by Ensinger (using Delrin® USA LLC resin) and sold under the trade name TECAFORM AD natural. This homopolymer acetal has exceptional sliding characteristics and good wear resistance properties. In comparison to POM-C, POM-H has a slightly higher density, hardness and strength due to its higher crystallinity. In addition, POM-H has good electrical insulating properties, as well as exceptional machining characteristics, making Ensinger's extruded Delrin® 150 natural acetal one of the most versatile engineering materials available today. Delrin® is registered trademark of Delrin USA LLC.
Facts
Chemical Designation
POM-H (Polyacetal (Homopolymer))
Color
white
Alternative colors available:
black
Density
1.41 g/cm3
POM-H (Polyacetal (Homopolymer))
Color
white
Alternative colors available:
black
Density
1.41 g/cm3
Features
- good machinability
- high stiffness
- high fatigue strength
- high creep resistance
- good wear properties
- very good abrasion resistance
Industries
food processing
food engineering
automotive industry
conveyor technology
construction industry
mechanical engineering
electronics
fixture construction
gear manufacturing
home appliances
food engineering
automotive industry
conveyor technology
construction industry
mechanical engineering
electronics
fixture construction
gear manufacturing
home appliances
Show/Hide Mechanical Properties
| Description | value | unit | condition | test method |
| Modulus of elasticity (tensile test) | 350,000 | psi | @ 73 °F | ASTM D 638 |
| Tensile strength at yield | 11,000 | psi | ASTM D 638 | |
| Elongation at break (tensile test) | 25 | % | @ 73 °F | ASTM D 638 |
| Flexural strength | 14,000 | psi | @ 73 °F | ASTM D 790 |
| Modulus of elasticity (flexural test) | 470,000 | psi | @ 73 °F | ASTM D 790 |
| Compression strength | 2,600 | psi | @ 1% strain | ASTM D 695 |
| Compression strength | 15,500 | psi | @ 10% strain | ASTM D 695 |
| Compression modulus | 325,000 | psi | ASTM D 695 | |
| Impact strength (Izod) | 2.0 | ft-lbs/in | @ 73 °F | |
| Rockwell hardness | 94 (120) | @ 73 °F M Scale (R Scale) |
ASTM D 785 | |
| Shore hardness | 84 | D scale | ASTM D 2240 | |
| Coefficient of friction | .2 | Dynamic 40 psi, 50 fpm |
ASTM D 3702 | |
| Wear rate | 55*10-10 | in³-min/ft-lbs-hr | 40 psi, 50 fpm | ASTM D 3702 |
| Shear strength | 9800 | psi | @ 73 °F |
Show/Hide Thermal Properties
| Description | value | unit | condition | test method |
| Melting temperature | 347 | °F | ASTM D 2133 | |
| Deflection temperature | 336 | °F | @ 66 psi | ASTM D 648 |
| Deflection temperature | 257 | °F | @ 264 psi | ASTM D 648 |
| Service temperature | 300 | °F | Intermittent | |
| Service temperature | 185 | °F | Long Term | |
| Thermal Expansion (CLTE) | 6.8*10-5 | in/in/°F | ASTM D 696 | |
| Specific heat | 0.35 | BTU/lb-°F |
Show/Hide Electrical Properties
| Description | value | unit | condition | test method |
| volume resistance | > 1015 | Ω*cm | ||
| Dielectric strength | 500 | V/mil | ASTM D 149 | |
| Dissipation factor | .005 | @ 60 Hz, 73 °F | ASTM D 150 | |
| Dielectric constant | 3.7 | @ 60 Hz, 73 °F, 50% RH | ASTM D 150 |
Show/Hide Other Properties
| Description | value | unit | condition | test method |
| Moisture absorption | .25 | % | @ 24 hrs, 73 °F | ASTM D 570 |
| Moisture absorption | .90 | % | @ saturation, 73 °F | ASTM D 570 |
| Flammability (UL94) | HB | UL 94 |
