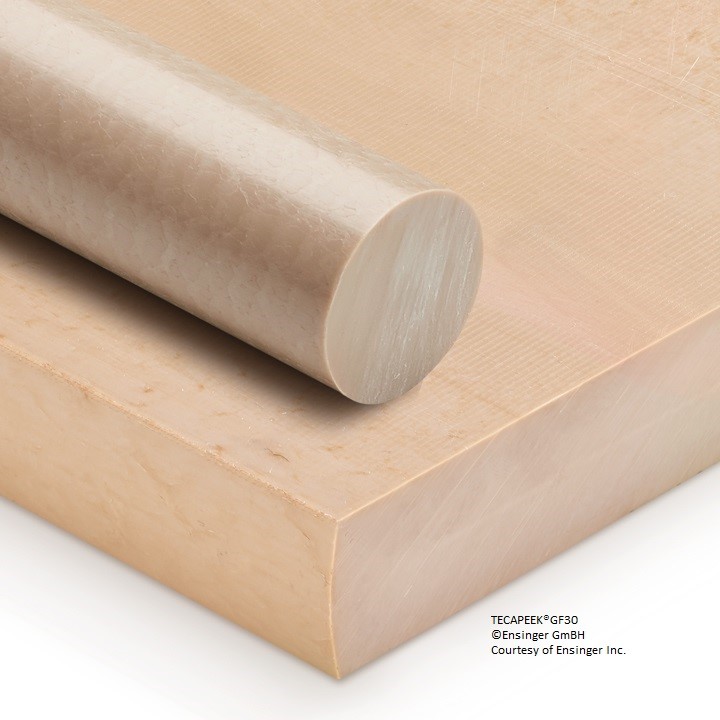

TECAPEEK ® GF30 natural
This is a special 30% glass filled PEEK modification that Ensinger manufactures under the name TECAPEEK GF30 natural. In comparison to unfilled PEEK, this glass fiber reinforced material exhibits increased mechanical strength and high rigidity. Furthermore, improved creep strength and dimensional stability are achieved by this glass filled PEEK. These properties make this material suitable for use in parts which are exposed to high static loads over long periods in high temperature conditions. As glass fibers tend in some cases to have a marked abrasive effect on mating surfaces, TECAPEEK GF30 is less suitable for bearing or wear applications.
TECAPEEK GF30 offers excellent chemical resistance, is insoluble in all common solvents, and exhibits superior resistance to high doses of gamma radiation. As with all PEEK grades, PEEK GF30 combines high thermal stability with minimal thermal expansion and very low moisture absorption.
As with all Ensinger PEEK materials, we can confirm that glass filled TECAPEEK GF30 natural meets the limitations imposed by RoHS Directive 2011/65/EU Restriction of Hazardous Substances in electrical and electronic equipment.
Facts
PEEK (Polyetheretherketone)
Color
natural opaque
Density
1.53 g/cm3
Fillers
30% glass fibres
Features
- Made exclusively from Victrex® resin
- Excellent chemical resistance
- High thermal resistance
- Good heat deflection temperature
- Good machinability
- Very good slide and wear properties
- Hydrolysis and superheated steam resistant
Industries
Food engineering
Food processing
Agricultural machinery
Aircraft and aerospace interiors
Automotive industry
Electrical engineering
Chemical plant engineering
Mechanical engineering
Conveyor technology
Show/Hide Mechanical Properties
| Description | value | unit | parameter |
norm |
| Tensile strength | 113 | MPa | 5mm/min | DIN EN ISO 527-2 |
| Modulus of elasticity (tensile test) |
6300 | MPa | 1mm/min | DIN EN ISO 527-2 |
| Elongation at break (tensile test) | 5 | % | 5mm/min | DIN EN ISO 527-2 |
| Compression strength | 29/52/120 | MPa | 1% / 2% / 5% 5mm/min, 10 N |
EN ISO 604 |
| Impact strength (Charpy) | 52 | kJ/m2 | max. 7,5J | DIN EN ISO 179-1eU |
| Shore hardness | 90 | D | DIN EN ISO 868 |
Show/Hide Thermal Properties
| Description | value | unit | parameter |
norm |
| Glass transition temperature | 147 | °C | DIN EN ISO 11357 | |
| Melting temperature | 341 | °C | DIN EN ISO 11357 | |
| Service temperature | 300 | °C | short term | |
| Service temperature | 260 | °C | long term | |
| Thermal expansion (CLTE) | 4 | 10-5 K-1 | 23-60°C, long. | DIN EN ISO 11359-1;2 |
| Thermal expansion (CLTE) | 4 | 10-5 K-1 | 23-100°C, long. | DIN EN ISO 11359-1;2 |
| Thermal expansion (CLTE) | 5 | 10-5 K-1 | 100-150°C, long. | DIN EN ISO 11359-1;2 |
| Specific heat | 1.0 | J/(g*K) | ISO 22007-4:2008 | |
| Thermal conductivity | 0.35 | W/(K*m) | ISO 22007-4:2008 |
Show/Hide Electrical Properties
| Description | value | unit | parameter |
norm |
| surface resistivity | 1014 | Ω | ||
| volume resistivity | 1014 | Ω*cm | ||
| Dielectric strength | 36 | kV/mm | 23°C, 50% r.h. | ISO 60243-1 |
Show/Hide Other Properties
| Description | value | unit | parameter |
norm |
| Water absorption | 0.02 / 0.03 | % | 24h / 96h (23°C) | DIN EN ISO 62 |
| Resistance to hot water/ bases | + | |||
| Resistance to weathering | - | |||
| Flammability (UL94) | V0 | corresponding to | DIN IEC 60695-11-10; |
