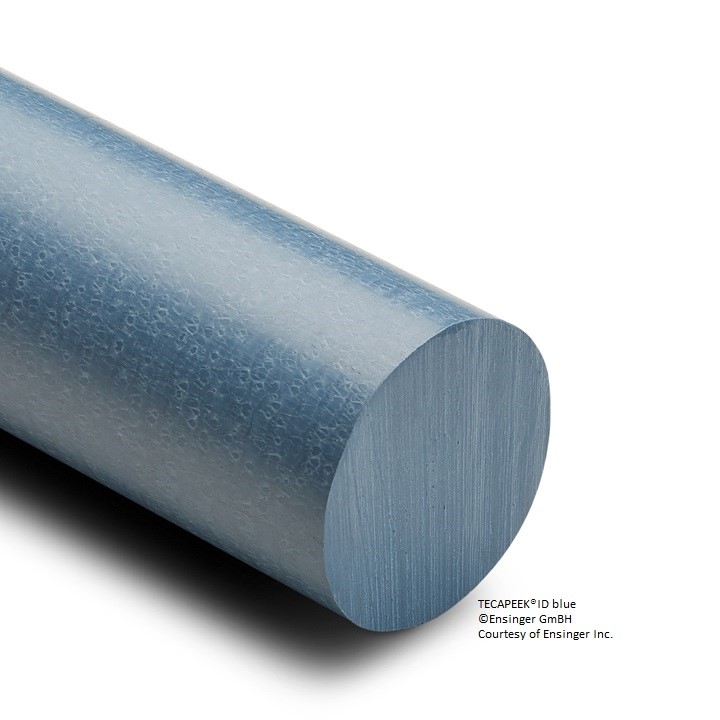

TECAPEEK ® ID blue
TECAPEEK ID blue is a metal detectable PEEK made with Victrex® PEEK polymer. This PEEK has been modified with a detectable filler designed to increase detectability in food and pharmaceutical processes. The material is sensitive enough to allow for the easy detection of small particulates using standard metal detection methods. It is also visible to those systems that rely on optical inspection equipment due to the addition of blue colored pigment. All additives are suitable for food contact.
Facts
Chemical Designation
PEEK (Polyetheretherketone)
Color
blue grey
Density
1.44 g/cm3
Fillers
detectable filler
PEEK (Polyetheretherketone)
Color
blue grey
Density
1.44 g/cm3
Fillers
detectable filler
Features
- detectable via metal detector
- very good chemical resistance
- hydrolysis and superheated steam resistant
- good heat deflection temperature
- high creep resistance
- inherent flame resistance
- good machinability
Industries
food processing
food technology
engineering for beverage filling systems
packaging and paper machinery
conveyor technology
pharmaceutical industry
mechanical engineering
food technology
engineering for beverage filling systems
packaging and paper machinery
conveyor technology
pharmaceutical industry
mechanical engineering
Show/Hide Mechanical Properties
| Description | value | unit | condition | test method |
| Modulus of elasticity (tensile test) | 624,000 | psi | (1mm/min) | DIN EN ISO 527-2 |
| Tensile strength at yield | 14,500 | psi | 50 mm/min | DIN EN ISO 527-2 |
| Tensile strength at break | 16,100 | psi | 50 mm/min | DIN EN ISO 527-2 |
| Elongation at yield (tensile test) | 4 | % | 50 mm/min | DIN EN ISO 527-1 |
| Elongation at break (tensile test) | 4 | % | @ 73 °F | DIN EN ISO 527-2 |
| Flexural strength | 24,100 | psi | 2 mm/min 10N | DIN EN ISO 178 |
| Modulus of elasticity (flexural test) | 638,000 | psi | ASTM D 790 | |
| Compression modulus | 696,000 | psi | 5 mm/min 10N | EN ISO 604 |
| Impact strength (Charpy) | 21.4 | ft-lbs/in | DIN EN ISO 179-1 |
Show/Hide Thermal Properties
| Description | value | unit | condition | test method |
| Glass transition temperature | 289 | °F | DIN 53765 | |
| Melting temperature | 649 | °F | DIN 53765 | |
| Service temperature | 572 | °F | Intermittent | |
| Service temperature | 500 | °F | Long Term |
Show/Hide Electrical Properties
| Description | value | unit | condition | test method |
| Surface resistivity | 1.0*1014 | Ω/square | ||
| Volume resistivity | 1.0*1014 | Ω*cm |
Show/Hide Other Properties
| Description | value | unit | condition | test method |
| Moisture absorption | 0.02 | % | @ 24 hrs. 73°F | ASTM D 570 |
| Moisture absorption | 0.03 | % | ASTM D 570 | |
| Flammability (UL94) | V0 |
