TECAPEEK® black polyetheretherketone

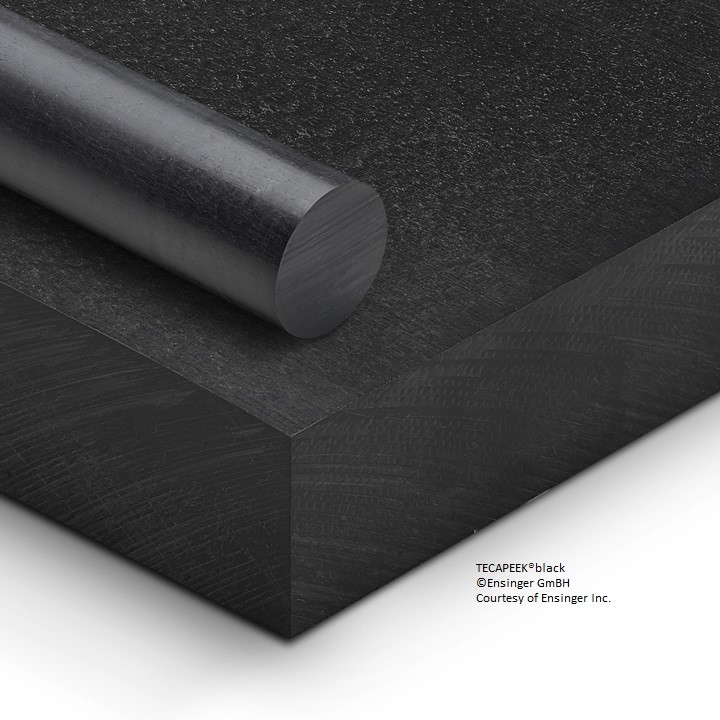

In addition to unfilled PEEK natural which is beige-brown in color, a black pigmented version of PEEK is also available. TECAPEEK black is manufactured by Ensinger and may use Victrex® PEEK 450 or Solvay Ketaspire® KT-820 polymer. It is available in rod, plate, and tube in a variety of dimensions. This black pigmented version of PEEK plastic demonstrates improved UV resistance in addition to the other typical PEEK properties which make this product an ideal material of choice for outdoor use.
Facts
Chemical Designation
PEEK (Polyetheretherketone)
Color
black opaque
Alternative colors available:
beige
Density
1.31 g/cm3
PEEK (Polyetheretherketone)
Color
black opaque
Alternative colors available:
beige
Density
1.31 g/cm3
Features
- Made exclusively from Victrex® resin
- Excellent chemical resistance
- High thermal resistance
- Good heat deflection temperature
- Good machinability
- Very good slide and wear properties
- Hydrolysis and superheated steam resistant
Industries
Aircraft and aerospace technology
Oil and gas industry
Chemical plant engineering
Semiconductor technology
Food engineering
Medical technology
Automotive industry
Process engineering
Mechanical engineering
Oil and gas industry
Chemical plant engineering
Semiconductor technology
Food engineering
Medical technology
Automotive industry
Process engineering
Mechanical engineering
Show/Hide Mechanical Properties
| Description | value | unit | condition |
test method |
| modulus of elasticity (tensile test) | 650,000 | psi | 1% Sec, 73 °F | ASTM D 638 |
| Tensile strength at yield | 16,000 | psi | @ 73 °F | ASTM D 638 |
| Tensile strength at break | 7,800 | psi | @ 73 °F | ASTM D 638 |
| Elongation at yield (tensile test) | 4.9 | % | @ 73 °F | ASTM D 638 |
| Elongation at break (tensile test) |
40 | % | @ 73 °F | ASTM D 638 |
| Flexural strength | 26,000 | psi | @ 73 °F | ASTM D 790 |
| Modulus of elasticity (flexural test) |
600,000 | psi | @ 73 °F | ASTM D 790 |
| Compression strength | 17,500 | psi | @ 73 °F 10% strain |
ASTM D 695 |
| Compression modulus | 493,000 | psi | @ 73 °F | ASTM D 695 |
| Notched impact strength (Izod) | 0.95 | ft-lbs/in | @ 73 °F | ASTM D 256 |
| Rockwell hardness | 99 | M Scale | ASTM D 785 | |
| Coefficient of friction | 0.20 | @ 68 °F Static , 40 psi |
ASTM D 3702 | |
| Coefficient of friction | 0.25 | @ 68 °F, Dynamic 40 psi 50 fpm |
ASTM D 3702 | |
| Wear (K) factor | 200 | *10-10 in³-min/ft-lb-hr | 40 psi, 50 fpm | ASTM D 3702 |
Show/Hide Thermal Properties
| Description | value | unit | condition |
test method |
| Glass transition temperature | 302 | °F | midpoint | DIN EN ISO 11357 |
| Melting temperature | 633 | °F | ||
| Deflection temperature | 320 | °F | @264 psi | ASTM D 648 |
| Service temperature | 480 | °F | Long Term | |
| Service temperature | 572 | °F | short term | |
| Thermal expansion (CLTE) | 2.5 | *10-5 in/in/°F | < Tg, along fllow | DIN EN ISO 11359-1;2 |
| Thermal conductivity | 2.01 | BTU-in/hr-ft2 -°F | ISO 22007-4:2008 |
Show/Hide Electrical Properties
| Description | value | unit | condition |
test method |
| surface resistivity | 1.0*1016 | Ω/square | ASTM D 257 | |
| volume resistance | 4.9*1016 | Ω*cm | @ 73 °F | ASTM D 149 |
| Dielectric strength | 630 | V/mil | 0.1" thick IEC 60243-1 | |
| Dissipation factor | 0.003 | @ 73 °F, 1 MHz | DIN IEC 60250 | |
| Dielectric constant | 2.8 | @ 73 °F, 1 MHz | DIN IEC 60250 |
Show/Hide Other Properties
| Description | value | unit | condition |
test method |
| Limiting PV | 69000 | psi-fpm | ASTM D 3702 | |
| Moisture absorption | 0.45 | % | @ saturation, 73 °F | DIN EN ISO 62 |
| Moisture absorption | 0.02 | % | @ 24 hrs, 73 °F | ASTM D 570 |
| Flammability (UL94) | V0 | |||
| HZ Technical guidelines | 50 - 100 | °F | Storage Temperature |
