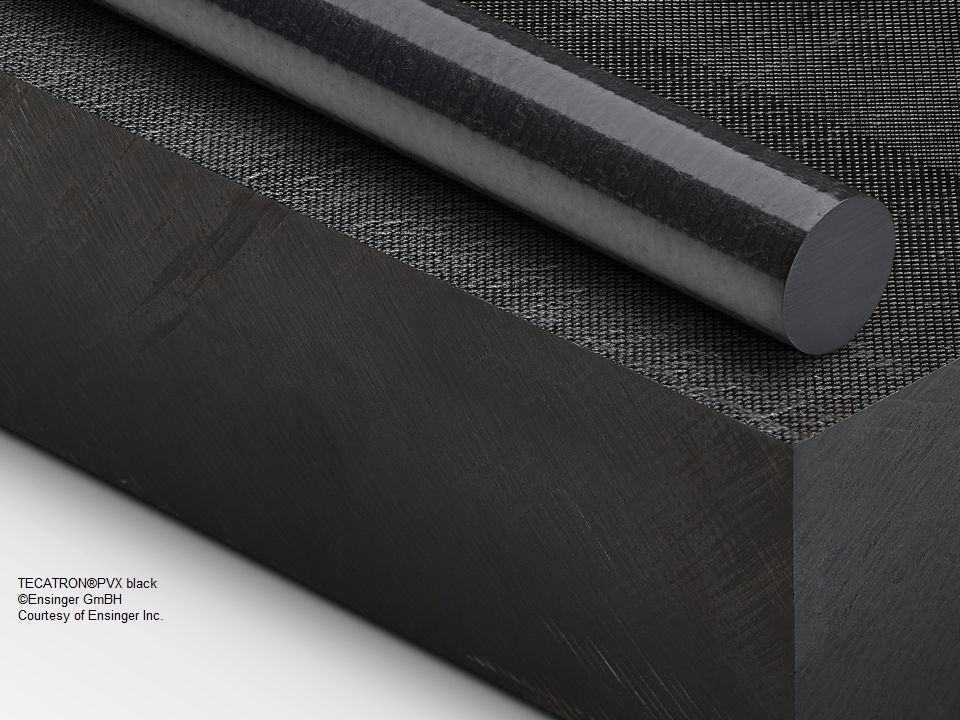

TECATRON ® PVX
Through TECATRON PVX black, Ensinger offers a filled PPS (PPS CS CF TF), which is a specially modified for use in sliding applications. The material contains 10% each of PTFE, graphite and carbon fibers which are added to the PPS to facilitate bearing and wear applications. The additives of the PPS compound result in an optimum coefficient of friction value, that makes the material ideally suited to dry running conditions. So TECATRON PVX is a bearing grade PPS that is suitable for high load applications, under high temperatures, and the effects of chemicals and steam. The PPS compound perfectly combines good mechanical properties with excellent thermal and chemical resistance properties.
Facts
Chemical Designation
PPS (Polyphenylensulfide)
Color
black opaque
Density
1.5 g/cm3
Fillers
carbon fibres, PTFE, graphite
PPS (Polyphenylensulfide)
Color
black opaque
Density
1.5 g/cm3
Fillers
carbon fibres, PTFE, graphite
Features
- very good bearing and wear properties
- very good chemical resistance
- good heat deflection temperature
- inherent flame resistance
- high dimensional stability
- high stiffness
- high creep resistance
Industries
mechanical engineering
aircraft and aerospace technology
automotive industry
conveyor technology
precision engineering
textile industry
aircraft and aerospace technology
automotive industry
conveyor technology
precision engineering
textile industry
Show/Hide Mechanical Properties
| Description | value | unit | condition | test method |
| Modulus of elasticity (tensile test) | 667,000 | psi | 1 mm/min | DIN EN ISO 527-2 |
| Tensile strength at yield | 7,700 | psi | @ 73 °F | ASTM D 638 |
| Tensile strength at break | 7700 | psi | 50 mm/min | DIN EN ISO 527-2 |
| Elongation at break (tensile test) | 1.5 | % | 50 mm/min | DIN EN ISO 527-2 |
| Flexural strength | 13,200 | psi | 2 mm/min | DIN EN ISO 178 |
| Modulus of elasticity (flexural test) | 696,000 | psi | 2 mm/min | DIN EN ISO 178 |
| Compression strength | 5220 | psi | 2% strain 5 mm/min |
EN ISO 604 |
| Compression strength | 2760 | psi | 1% strain 5 mm/min |
EN ISO 604 |
| Compression modulus | 479,000 | psi | @ 73 °F | ASTM D 695 |
| Impact strength (Izod) | 6.7 | ft-lbs/in | @ 73 °F |
Show/Hide Thermal Properties
| Description | value | unit | condition | test method |
| Melting temperature | 538 | °F | DIN 53765 | |
| Service temperature | 500 | °F | Intermittent | |
| Service temperature | 446 | °F | Long Term | |
| Thermal expansion (CLTE) | 2.8*10-5 | in/in/°F | 72 - 140 F extrusion direction | DIN EN ISO 11359-1;2 |
| Specific heat | 0.215 | BTU/lb-°F | ISO 22007-4:2008 | |
| Thermal conductivity | 4.03 | % | ISO 22007-4:2008 |
Show/Hide Electrical Properties
| Description | value | unit | condition | test method |
| Surface resistivity | 104 - 1010 | Ω/square | DIN EN 61340-2-3 | |
| Volume resistivity | 107 - 1012 | Ω*cm | DIN EN 61340-2-3 |
Show/Hide Other Properties
| Description | value | unit | condition | test method |
| Moisture absorption | 0.02 | % | @ 24 hrs, 73 °F | ASTM D 570 |
| Flammability (UL94) | V0 |
