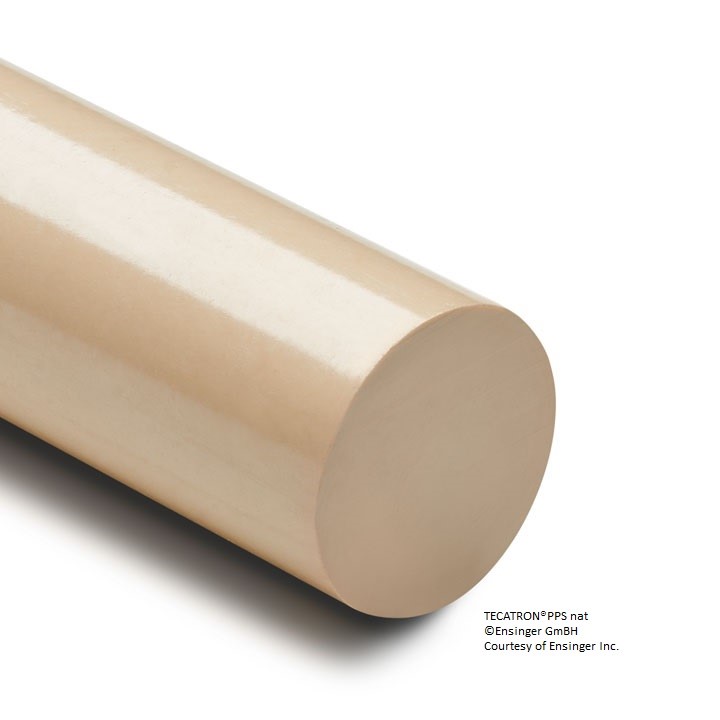

TECATRON® PPS natural
Polyphenylenesulphide (PPS) - TECATRON - is a semi crystalline, high temperature thermoplastic. Due to its chemical structure, PPS is a very resistant polymer with high mechanical strength and rigidity, even at temperatures above 392°F. In addition to the low water absorption, PPS also shows good dimensional stability, low tendency to creep and excellent electrical properties, and is thus well suited for parts with tightest tolerances. Furthermore, unfilled PPS is very chemically stable, even at high temperatures, but does show sensitivity to UV radiation when uncolored. There is no known solvent that dissolves TECATRON PPS at temperatures below 392°F.
Facts
Chemical Designation
PPS (Polyphenylensulfide)
Color
natural
Density
1.36 g/cm3
PPS (Polyphenylensulfide)
Color
natural
Density
1.36 g/cm3
Features
- high purity
- very good chemical resistance
- good heat deflection temperature
- high creep resistance
- high strength
- high dimensional stability
- resistance against high energy radiation
Industries
chemical technology
mechanical engineering
precision engineering
electrical engineering
food processing
food engineering
vacuum technology
mechanical engineering
precision engineering
electrical engineering
food processing
food engineering
vacuum technology
Show/Hide Mechanical Properties
| Description | value | unit | condition | test method |
| Modulus of elasticity (tensile test) | 836,700 | psi | @ 73 °F | ASTM D 638 |
| Tensile strength at yield | 13,700 | psi | @ 73 °F | ASTM D 638 |
| Elongation at break (tensile test) | 2.5 | % | @ 73 °F | ASTM D 638 |
| Flexural strength | 20,400 | psi | @ 73 °F | ASTM D 790 |
| Modulus of elasticity (flexural test) | 631,100 | psi | @ 73 °F | ASTM D 790 |
| Compression strength | 19,000 | psi | @ 10% strain | ASTM D 695 |
| Compression modulus | 400,000 | psi | ASTM D 695 | |
| Impact strength (Izod) | 0.62 | ft-lbs/in | @ 73 °F | ASTM D 256 |
| Rockwell hardness | 105 | @ 73 °F M Scale |
ASTM D 785 | |
| Rockwell hardness | 124 | R Scale | ASTM D 785 | |
| Coefficient of friction | 0.24 | Dynamic, 40 psi, 50 fpm | ASTM D 3702 | |
| Wear (K) factor | 540*10-10 | in³-min/ft-lbs-hr | Against Steel, 40 psi, 50 fpm | ASTM D 3702 |
Show/Hide Thermal Properties
| Description | value | unit | condition | test method |
| Melting temperature | 536 | °F | ||
| Deflection temperature | 220 | °F | @ 264 psi | ASTM D 648 |
| Deflection temperature | 400 | °F | @ 66 psi | ASTM D 648 |
| Service temperature | 338 | °F | Long Term | |
| Service temperature | 500 | °F | Intermittent | |
| Thermal expansion (CLTE) | 3.3 | *10-5 in/in/°F | 72 F - 140 F | ASTM D 696 |
| Specific heat | 0.239 | BTU/lb-°F | ISO 22007-4:2008 | |
| Thermal conductivity | 2.08 | BTU-in/hr-ft2 -°F | ISO 22007-4:2008 |
Show/Hide Electrical Properties
| Description | value | unit | condition | test method |
| Surface resistivity | 1.0*1015 | Ω/square | DIN IEC 60093 | |
| Dielectric strength | 450 | V/mil | ASTM D 149 | |
| Dissipation factor | .0001 | @ 1 KHz, 73 °F | ASTM D 150 | |
| Dielectric constant | 3.0 | @ 1 KHz, 73 °F, 50% RH | ASTM D 150 |
Show/Hide Other Properties
| Description | value | unit | condition | test method |
| Moisture absorption | 0.01 | % | @ 24 hrs, 73 °F | ASTM D 570 |
| Flammability (UL94) | V0 | DIN IEC 60695-11-10 |
