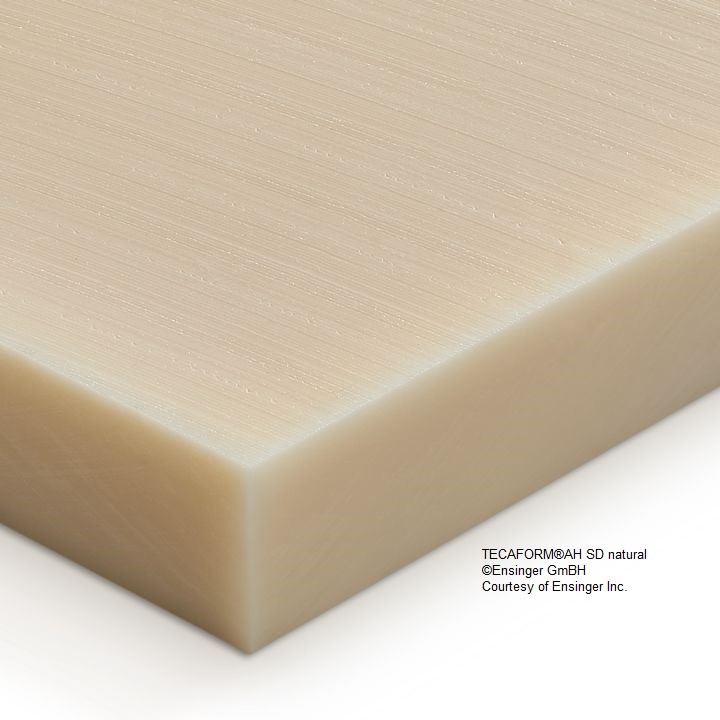

TECAFORM® AH SD natural
Ensinger manufactures natural acetal (POM-C) material modified by the addition of a special anti static agent. The product is sold under the trade name TECAFORM AH SD natural. The addition of this anti static agent produces a defined degree of conductivity in the anti static range. However, the addition of the anti static agent can compromise the strength and hardness of the material depending on the application. TECAFORM AH SD natural is a white acetal and offers good wear resistance, high chemical resistance, and has high toughness and strength. Furthermore, this special anti static POM-C white acetal has exceptional electrical conductivity, which makes it a perfect material for products and applications in the electronics industry.
Facts
POM-C (Polyacetal (Copolymer))
Color
natural opaque
Density
1.33 g/cm3
Fillers
antistatic agent
Features
- non-sloughing
- easy to machine
- good wear properties
- good chemical resistance
- good mechanical properties
- antistatic
Industries
protection of electronics
computer technology
explosion protection
mining industry
business machines
conveyor technology
Show/Hide Mechanical Properties
| Description | value | unit | condition | test method |
| Modulus of elasticity (tensile test) | 189,000 | psi | @ 73 °F | ASTM D 638 |
| Tensile strength at yield | 5,000 | psi | @ 73 °F | ASTM D 638 |
| Elongation at yield (tensile test) | 23 | % | @ 73 °F | ASTM D 638 |
| Elongation at break (tensile test) | 20 | % | ASTM D 638 | |
| Flexural strength | 7,000 | psi | ASTM D 790 | |
| Modulus of elasticity (flexural test) | 210,000 | psi | ASTM D 790 | |
| Compression strength | 6,700 | psi | @ 10% strain | ASTM D 695 |
| Compression modulus | 150,000 | psi | @ 73 °F | ASTM D 695 |
| Impact strength (Izod) | 1.6 | ft-lbs/in | ASTM D 256 | |
| Coefficient of friction | 0.11 | Static | ||
| Coefficient of friction | 0.18 | Dynamic |
Show/Hide Thermal Properties
| Description | value | unit | condition | test method |
| Melting temperature | 329 | °F | ||
| Deflection temperature | 190 | °F | @ 264 psi | ASTM D 648 |
| Service temperature | 212 | °F | Long Term | |
| Service temperature | 284 | °F | short term | |
| Thermal expansion (CLTE) | 7.5*10-5 | in/in/°F |
Show/Hide Electrical Properties
| Description | value | unit | condition | test method |
| Surface resistivity | 109 - 1011 | Ω/square | ASTM D 257 | |
| Dielectric strength | 500 | V/mil |
Show/Hide Other Properties
| Description | value | unit | condition | test method |
| Moisture absorption | 1.4 | % | @24 hr, 73 °F | ASTM D 570 |
| Flammability (UL94) | HB |
