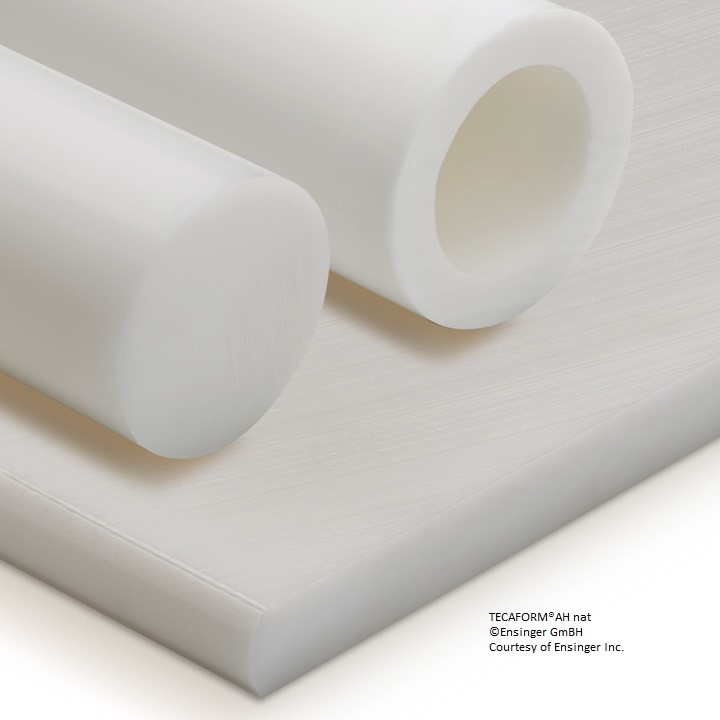

TECAFORM® AH natural
TECAFORM AH natural acetal is an unfilled porosity free POM-C with a unique balance of physical properties not available in most other thermoplastics. This copolymer acetal is an engineering plastic made for wide-ranging universal applications in many different industries. The key performance characteristics of unmodified POM copolymer include high mechanical strength and rigidity, excellent wear, low moisture absorption and excellent dimensional stability. Unfilled POM-C copolymer is manufactured by Ensinger under the tradename TECAFORM AH natural, and offers high crystallinity and a good degree of toughness (even in the lower temperature range), combined with good chemical resistance.
Facts
Chemical Designation
POM-C (Polyacetal (Copolymer))
Color
white
Alternative colors available:
white
Density
1.41 g/cm3
POM-C (Polyacetal (Copolymer))
Color
white
Alternative colors available:
white
Density
1.41 g/cm3
Features
- porosity free
- good wear properties
- low water absorption
- good chemical resistance
- easy to machine
- high dimensional stability
Industries
food technology
food processing
agricultural machinery
construction industry
conveyor technology
automotive industry
gear manufacturing
packaging and paper machinery
heavy duty industry
process engineering
food processing
agricultural machinery
construction industry
conveyor technology
automotive industry
gear manufacturing
packaging and paper machinery
heavy duty industry
process engineering
Show/Hide Mechanical Properties
| Description | value | unit | condition | test method |
| Modulus of elasticity (tensile test) | 330,000 | psi | @ 73 °F | ASTM D 638 |
| Tensile strength at yield | 9,300 | psi | @ 73 °F | ASTM D 638 |
| Tensile strength at break | 9,700 | psi | @ 73 °F | ASTM D 638 |
| Elongation at yield (tensile test) | 9 | % | @ 73 °F | ASTM D 638 |
| Elongation at break (tensile test) | 40 | % | @ 73 °F | ASTM D 638 |
| Flexural strength | 13,000 | psi | @ 73 °F | ASTM D 790 |
| Modulus of elasticity (flexural test) | 400,000 | psi | @ 73 °F | ASTM D 790 |
| Compression strength | 4,500 | °F | @ 73 °F, 5% strain | ASTM D 695 |
| Compression strength | 2,500 | psi | @ 73 °F, 1% strain | ASTM D 695 |
| Compression strength | 12,000 | psi | @ 73 °F, 10% strain | ASTM D 695 |
| Compression modulus | 250,000 | psi | @ 73 °F | ASTM D 695 |
| Impact strength (Izod) | 1.0 | ft-lbs/in | @ 73 °F | |
| Rockwell hardness | 86 | @ 73 °F M Scale |
ASTM D 785 | |
| Rockwell hardness | 120 | @ 73 °F, R scale | ASTM D 785 | |
| Coefficient of friction | .21 | Dynamic 40 psi, 50 fpm |
ASTM D 3702 | |
| Wear (K) factor | 65 x 10-10 | in³-min/ft-lbs-hr | 40 psi, 50 fpm | ASTM D 3702 |
Show/Hide Thermal Properties
| Description | value | unit | condition | test method |
| Melting temperature | 329 | °F | ||
| Deflection temperature | 316 | °F | @ 66 psi | ASTM D 648 |
| Deflection temperature | 230 | °F | @ 264 psi | ASTM D 648 |
| Service temperature | 285 | °F | Intermittent | |
| Service temperature | 195 | °F | Long Term | |
| Thermal expansion (CLTE) | 4.7*10-5 | in/in/°F | ASTM D 696 |
Show/Hide Electrical Properties
| Description | value | unit | condition | test method |
| Volume resistance | 1.0 x 1014 | Ω*cm | ASTM D 257 | |
| Dielectric strength | 500 | V/mil | ASTM D 149 | |
| Dissipation factor | .001 | % | @ 60 Hz, 73 °F | ASTM D 150 |
| Dielectric constant | 3.7 | % | @ 60 Hz, 73 °F, 50% RH | ASTM D 150 |
Show/Hide Other Properties
| Description | value | unit | condition | test method |
| Moisture absorption | 0.18 | % | @ 24 hrs, 73 °F | ASTM D 570 |
| Moisture absorption | .80 | % | @ saturation, 73 °F | ASTM D 570 |
| Flammability (UL94) | HB | % | UL 94 |
