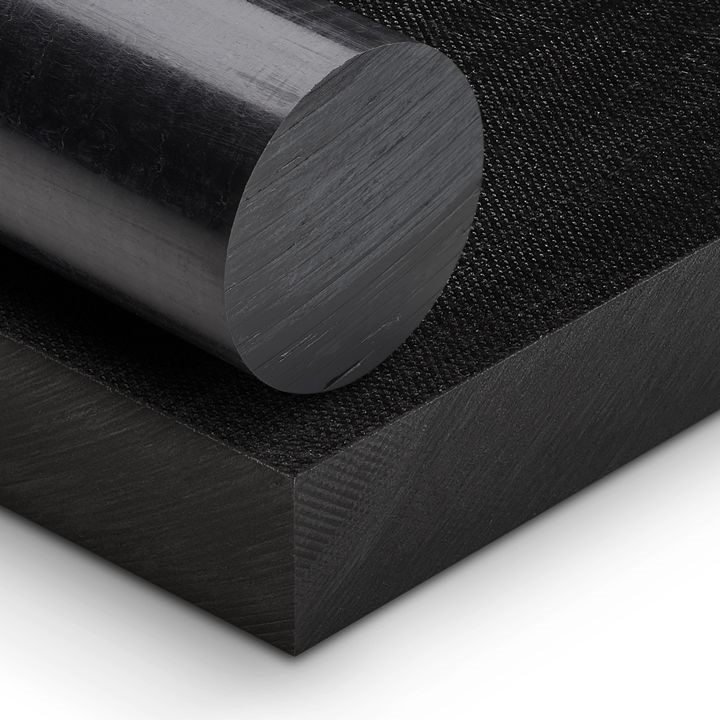

TECAMID® 66 GF30 black
PA66 GF30 is a 30 % glass fiber reinforced PA 66. It demonstrates outstanding mechanical properties such as higher strength, rigidity, creep strength and dimensional stability. Compared to unreinforced PA 66, the properties of this glass filled modification GF30 make this material suitable for use in parts that are exposed to high static loads over long periods in high temperature conditions. As glass fibers tend in some cases to have a marked abrasive effect on mating surfaces, Nylon 66 GF30 is less suitable for sliding applications. Due to its black color additives, black Nylon 66 GF30 shows improved UV protection for outdoor weather resistance applications. Ensinger manufactures PA66 GF30 under the trade name TECAMID 66 GF 30 black.
Facts
PA 66 (Polyamide 66)
Color
black
Density
1.36 g/cm3
Alternative colors available:
grey-white
Fillers
30% glass fibres
Features
- very good mechanical strength
- high heat deflection temperature
- high stiffness
- high strength
- excellent wear properties
- high fatigue strength
- resistant to many solvents
- high creep resistance
Industries
gear manufacturing
automotive industry
conveyor technology
mechanical engineering
construction industry
others
Show/Hide Mechanical Properties
| Description | value | unit | condition | test method |
| Modulus of elasticity (tensile test) | 600,000 | psi | @ 73 °F | ASTM D 638 |
| Tensile strength at yield | 12,200 | psi | @ 73 °F | ASTM D 638 |
| Elongation at break (tensile test) | 10 | % | @ 73 °F | ASTM D 638 |
| Flexural strength | 19,575 | psi | @ 73 °F | ASTM D 790 |
| Modulus of elasticity (flexural test) | 700,000 | psi | @ 73 °F | ASTM D 790 |
| Compression strength | 4,300 | psi | @ 73 °F, 1% strain | ASTM D 695 |
| Compression strength | 17,000 | psi | @ 73 °F, 10% strain | ASTM D 695 |
| Compression modulus | 450,000 | psi | @ 73 °F | ASTM D 695 |
| Impact strength (Izod) | 0.75 | ft-lbs/in | ASTM D 256 | |
| Rockwell hardness | 88 | M Scale | ASTM D 785 | |
| Rockwell hardness | 117 | R scale | ASTM D 785 |
Show/Hide Thermal Properties
| Description | value | unit | condition | test method |
| Melting temperature | 499 | °F | ||
| Service temperature | 338 | °F | Intermittent | |
| Service temperature | 230 | °F | Long Term | |
| Thermal expansion (CLTE) | 2.7*10-5 | in/in/°F | ASTM D 696 | |
| Specific heat | 0.3 | BTU/lb-°F | ||
| Thermal conductivity | 2.71 | BTU-in/hr-ft2 -°F |
Show/Hide Electrical Properties
| Description | value | unit | condition | test method |
| surface resistivity | 1.0*1014 | Ω/square | ASTM D 257 | |
| volume resistance | 1.0*1014 | Ω*cm |
Show/Hide Other Properties
| Description | value | unit | condition | test method |
| Moisture absorption | 0.25 | % | @ 24 hrs, 73 °F | ASTM D 570 |
| Moisture absorption | 0.30 | % | @ saturation, 73 °F | ASTM D 570 |
