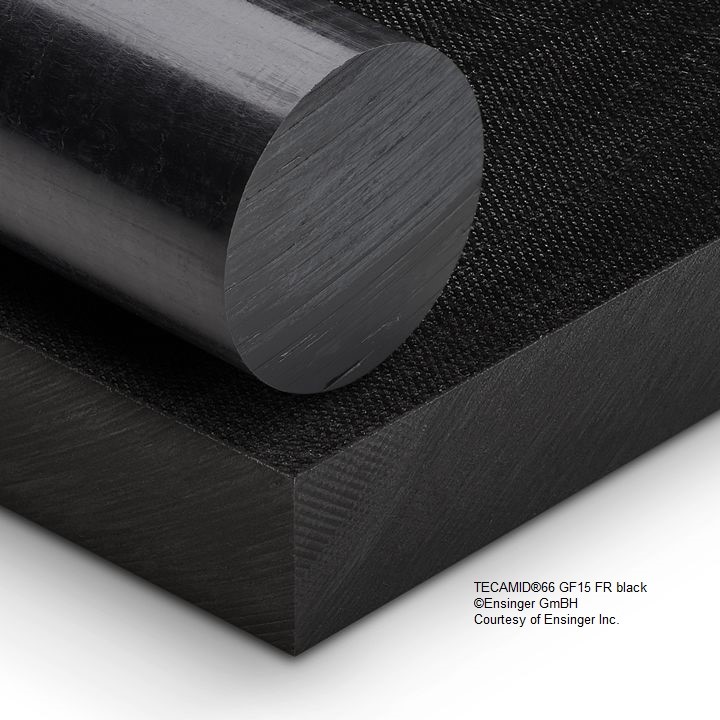

TECAMID 66 GF15 FR black
TECAMID 66 GF15 FR black is a specially formulated glass filled 66 nylon plastic designed for use in aircraft design when additional stiffness and strength might be required in a given aircraft aerospace material application. This PA66 plastic has been tested to and passed the requirements for FAR 25.853 for aircraft interior materials, and could be considered as a more cost effective option than some other higher performance materials such as PEEK or PPS. The fiber reinforced material's favorable flame and smoke generation characteristics demonstrated in independent flammability tests make it suitable for structural support applications in aircraft interior spaces.
Facts
Chemical Designation
PA 66 (Polyamide 66)
Color
black
Density
1.3 g/cm3
Fillers
flame retardant (halogen free), glass fibres
PA 66 (Polyamide 66)
Color
black
Density
1.3 g/cm3
Fillers
flame retardant (halogen free), glass fibres
Features
- resistant to many oils, greases and fuels
- high strength
Industries
aircraft and aerospace interiors
aircraft and aerospace technology
mechanical engineering
transportation
aircraft and aerospace technology
mechanical engineering
transportation
Show/Hide Mechanical Properties
| Description | value | unit | condition | test method |
| Modulus of elasticity (tensile test) | 465,000 | psi | @ 73 °F | ASTM D 638 |
| Tensile strength at yield | 6,890 | psi | @ 73 °F | ASTM D 638 |
| Elongation at break (tensile test) | 5.8 | % | @ 73 °F | ASTM D 638 |
| Flexural strength | 17,200 | psi | @ 73 °F | ASTM D 790 |
| Modulus of elasticity (flexural test) | 722,000 | psi | @ 73 °F | ASTM D 790 |
| Compression strength | 3,900/21,500 | psi | 1% / 10% strain | ASTM D 695 |
| Compression modulus | 386,000 | psi | ASTM D 695 | |
| Impact strength (Izod) | 0.70 | ft-lbs/in | @ 73 °F | ASTM D 256 |
| Rockwell hardness | 85 | M scale | ASTM D 785 | |
| Rockwell hardness | 118 | R Scale |
Show/Hide Thermal Properties
| Description | value | unit | condition | test method |
| Melting temperature | 487 | °F | ||
| Service temperature | 230 | °F | Long Term | |
| Service temperature | 338 | °F | Intermittent |
Show/Hide Other Properties
| Description | value | unit | condition | test method |
| Flammability | pass | 60 seconds Vertical Bunsen Burner test | AITM 2.0002A | |
| Flammability | pass | 15 seconds Horizontal Bunsen Burner test | AITM 2.0003 | |
| Flammability | pass | Specific Optical Smoke Density | AITM 2.0007B | |
| Flammability | pass | 60 seconds Vertical Bunsen Burner test 25.853 (a) Amdt 25 116 App F Part 1(a)(1)(i) | FAR 25.853 | |
| Flammability | pass | Gas Toxicity, as Per Airbus directive ABD0031 | AITM 3.0005 |
