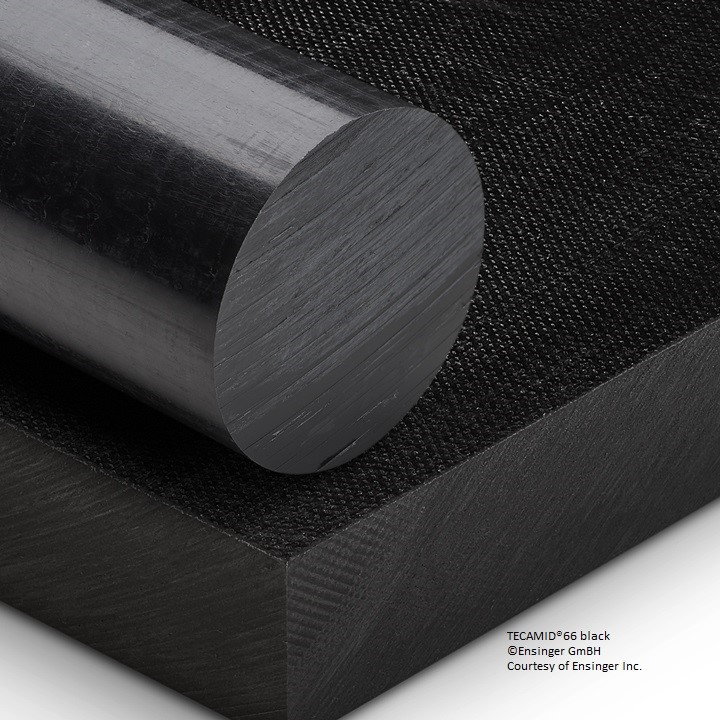

TECAMID® 66 black
TECAMID 66 black Polyamide 66 has good rigidity, hardness, abrasion resistance and thermal dimensional stability. In addition, this nylon 66 has outstanding wear resistance and low frictional properties. It also has very good temperature, chemical, and impact properties. Users should be aware of PA 66 propensity to absorb moisture which could affect dimensional stability. In fact, PA 66 will tend to absorb more moisture at saturation than cast PA type 6. It has been successfully used in diverse applications ranging from electronics, marine, and automotive industries, to forestry, construction and mining.
Facts
Chemical Designation
PA 66 (Polyamide 66)
Color
black
Density
1.14 g/cm3
PA 66 (Polyamide 66)
Color
black
Density
1.14 g/cm3
Features
- very good slide and wear properties
- good machinability
- broad chemical compatibility
- resistent to cleaning agents
Industries
agricultural machinery
automotive industry
business machines
construction industry
food engineering
conveyor technology
heavy duty industry
textile industry
automotive industry
business machines
construction industry
food engineering
conveyor technology
heavy duty industry
textile industry
Show/Hide Mechanical Properties
| Description | value | unit | condition | test method |
| Modulus of elasticity (tensile test) | 350,000 | psi | ASTM D 638 | |
| Tensile strength at yield | 12,000 | psi | @ 73 °F | ASTM D 638 |
| Tensile strength at break | 12,300 | psi | @ 73 °F | ASTM D 638 |
| Elongation at yield (tensile test) | 7 | @ 73 °F | ASTM D 638 | |
| Elongation at break (tensile test) | 50 | @ 73 °F | ASTM D 638 | |
| Flexural strength | 16,500 | psi | @ 73 °F | ASTM D 790 |
| Modulus of elasticity (flexural test) | 440,000 | psi | @ 73 °F | ASTM D 790 |
| Compression strength | 1,500 | psi | @ 73 °F, 1% strain | ASTM D 695 |
| Compression modulus | 392,000 | psi | @ 73 °F | ASTM D 695 |
| Impact strength (Izod) | 1.2 | ft-lbs/in | @ 73 °F | ASTM D 256 |
| Rockwell hardness | 85 | @ 73 °F M Scale |
ASTM D 785 | |
| Coefficient of friction | 0.26 | Dynamic 40 psi, 50 fpm |
ASTM D 3702 | |
| Wear rate | 200*10-10 | in³-min/ft-lbs-hr | 40 psi, 50 fpm | ASTM D 3702 |
Show/Hide Thermal Properties
| Description | value | unit | condition | test method |
| Melting temperature | 491 | °F | ASTM D 2133 | |
| Deflection temperature | 194 | °F | @264 psi | ASTM D 648 |
| Deflection temperature | 450 | °F | @ 66psi | ASTM D 648 |
| Service temperature | 300 | °F | short term | |
| Service temperature | 185 | °F | Long Term | |
| Thermal expansion (CLTE) | 4.5*10-5 | in/in/°F | ASTM D 696 | |
| Specific heat | 0.4 | BTU/lb-°F |
Show/Hide Electrical Properties
| Description | value | unit | condition | test method |
| volume resistance | 1015 | Ω*cm | ASTM D 257 | |
| Dissipation factor | 0.01 | @ 60 Hz, 70 °F | ASTM D 150 | |
| Dielectric constant | 4 | @ 60 Hz, 70 °F, 50% RH | ASTM D 150 | |
| Dielectric constant | 3.6 | @ 1 MHz | ASTM D 150 |
Show/Hide Other Properties
| Description | value | unit | condition | test method |
| Water absorption | 0.45 | % | @ 24 hrs, 73 °F | ASTM D 570 |
| Moisture absorption | 8.5 | % | @ saturation, 73 °F | ASTM D 570 |
