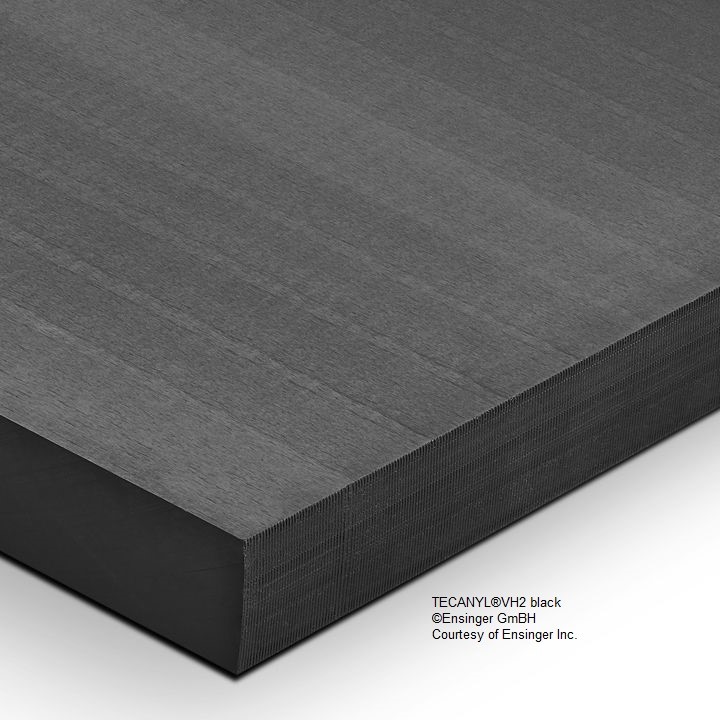

TECANYL VH2 Black
TECANYL VH2 black is a specially formulated PPE plastic (Polyphenylene ether) designed for use in commercial aircraft interiors. It has been tested to and passed the requirements for FAR 25.853, as well as specific customer specifications for interior cabin products. The material's favorable flame and smoke generation characteristics make it suitable for applications in aircraft interior spaces such as the galley, bathrooms, and interior cabin space, and even in the flight deck itself. Also available in grey as a custom run item.
Facts
Chemical Designation
PPO (Polyphenylene oxide)
Color
black
Density
1.12 g/cm3
PPO (Polyphenylene oxide)
Color
black
Density
1.12 g/cm3
Features
- excellent dimensional stability
- very good chemical resistance
- flame retardant according to UL94 V-0
- low smoke emissions
- low moisture absorption
- good electrically insulating
Industries
aircraft and aerospace interiors
aircraft and aerospace technology
Railway Interiors
transportation
aircraft and aerospace technology
Railway Interiors
transportation
Show/Hide Mechanical Properties
| Description | value | unit | condition | test method |
| Modulus of elasticity (tensile test) | 322,000 | psi | ASTM D 638 | |
| Tensile strength at yield | 9280 | psi | ASTM D 638 | |
| Tensile strength at break | 7690 | psi | ASTM D 638 | |
| Flexural strength | 14,500 | psi | ASTM D 790 | |
| Modulus of elasticity (flexural test) | 342,000 | psi | @ 73 °F | ASTM D 790 |
| Notched impact strength (Izod) | 5.6 | ft-lbs/in | @ 73 °F | ASTM D 256 |
Show/Hide Thermal Properties
| Description | value | unit | condition | test method |
| Deflection temperature | 252 | °F | @ 264 psi | ASTM D 648 |
Show/Hide Other Properties
| Description | value | unit | condition | test method |
| Flammability (UL94) | V0 | |||
| Flammability | 1.0 | Glow Wire Flammability Index 960°C passes @ | ||
| Flammability | 775 | °C | Glow Wire Ignitability Temp, 1.0 mm |
|
| Flammability | 775 | °C | Glow Wire Ignitability Temp, 1.5 mm |
|
| Flammability | 775 | °C | Glow Wire Ignitability Temp, 2.0 mm |
|
| Flammability | 800 | °C | Glow Wire Ignitability Temp, 3.0 mm |
|
| Flammability | Passes | 60 sec. Vertical Bunsen Burner test FAR 25.853 Appx F, Prt 1, (a), 1, (Air) | FAR 25.853 | |
| Flammability | Passes | FAR 25.853 Appx F, Prt 1, (a), 1, (Air) | FAR 25.853 | |
| Flammability | Passes | FAR 25.853 Appx F, Prt 1, (a), 1, (Air) | ||
| Flammability | ~15 | ASTM E 162 (rail) | ||
| Flammability | 11-13 Passes |
ASTM E 662 (Air/Rail) Ds @ 1.5 min | ||
| Flammability | 20-40 passes |
ASTM E 662 (Air/Rail) Ds @ 4.0 min | ||
| Flammability | 73-106 Meets FAR Reqt's |
ASTM E 662 (Air/Rail) Ds @ 20 min |
