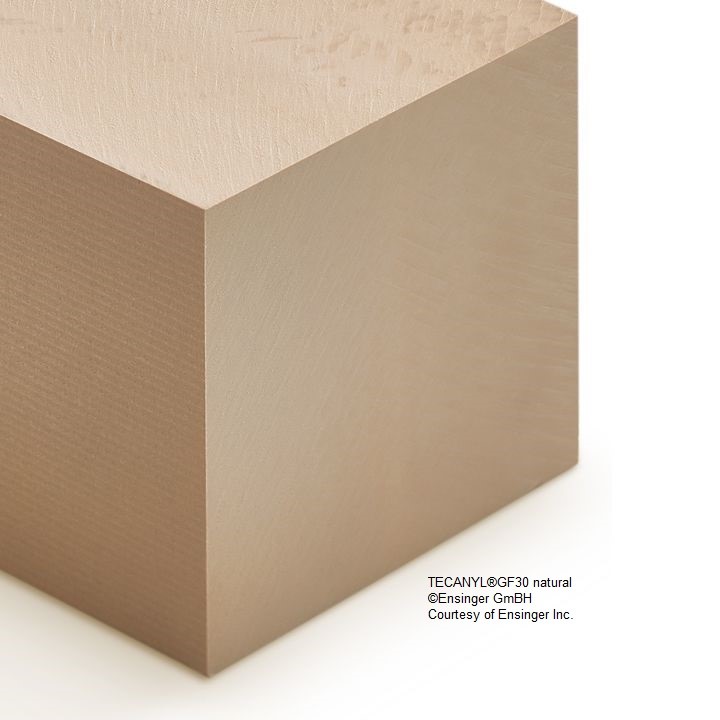

TECANYL GF30 natural
PPE GF30 is a special 30% glass fibre reinforced product which is manufactured by Ensinger under the trade name TECANYL GF30. In comparison to unfilled TECANYL, the glass filled modification demonstrates optimized properties in a number of areas. It has a high rigidity, high mechanical strength, high creep strength and a high compressive strength. Finally, glass fibre reinforced PPE GF30 has a very high dimensional stability. As glass fibres tend in some cases to have a marked abrasive effect on mating surfaces, TECANYL GF30 is less suitable for sliding applications. Due to its high dimensional stability, low thermal expansion, and high heat deflection temperature, this glass filled PPE is very well suited for precision and electrical insulating parts.
Facts
PPE (Polyphenylene ether)
Color
beige opaque
Density
1.3 g/cm3
Fillers
glass fibres
Features
- very high stiffness
- electrically insulating
- good weldable and bondable
- sensitive to stress cracking
- high strength
- high dimensional stability
Industries
precision engineering
conveyor technology
mechanical engineering
power engineering
automotive industry
home appliances
Show/Hide Mechanical Properties
| Description | value | unit | condition | test method |
| Tensile strength | 73 | MPa | 50mm/min | DIN EN ISO 527-2 |
| Modulus of elasticity (tensile test) | 4100 | MPa | 1mm/min | DIN EN ISO 527-2 |
| Tensile strength at yield | 73 | MPa | 50mm/min | DIN EN ISO 527-2 |
| Elongation at yield (tensile test) | 5 | % | 50mm/min | DIN EN ISO 527-2 |
| Elongation at break (tensile test) | 5 | % | 50mm/min | DIN EN ISO 527-2 |
| Flexural strength | 116 | MPa | 2mm/min, 10 N | DIN EN ISO 178 |
| Modulus of elasticity (flexural test) | 3900 | MPa | 2mm/min, 10 N | DIN EN ISO 178 |
| Compression strength | 23 / 41 | MPa | 1% / 2% 5mm/min, 10 N |
EN ISO 604 |
| Compression modulus | 3300 | MPa | 5mm/min, 10 N | EN ISO 604 |
| Impact strength (Charpy) | 37 | kJ/m2 | max. 7,5J | DIN EN ISO 179-1eU |
| Ball indentation hardness | 205 | MPa | ISO 2039-1 |
Show/Hide Thermal Properties
| Description | value | unit | condition | test method |
| Glass transition temperature | 150 | °C | DIN 53765 | |
| Melting temperature | n.a. | °C | DIN 53765 | |
| Service temperature | 110 | °C | short term | |
| Service temperature | 85 | °C | long term | |
| Thermal expansion (CLTE) | 4 | 10-5 K-1 | 23-60°C, long. | DIN EN ISO 11359-1;2 |
| Thermal expansion (CLTE) | 4 | 10-5 K-1 | 23-100°C, long. | DIN EN ISO 11359-1;2 |
| Specific heat | 1.2 | J/(g*K) | ISO 22007-4:2008 | |
| Thermal conductivity | 0.28 | W/(K*m) | ISO 22007-4:2008 |
Show/Hide Electrical Properties
| Description | value | unit | condition | test method |
| Surface resistivity | 1014 | Ω | DIN IEC 60093 | |
| Volume resistivity | 1014 | Ω*cm | DIN IEC 60093 |
Show/Hide Other Properties
| Description | value | unit | condition | test method |
| Water absorption | 0.01 / 0.02 | % | 24h / 96h (23°C) | DIN EN ISO 62 |
| Resistance to hot water/ bases | (+) | |||
| Resistance to weathering | ||||
| Flammability (UL94) | HB | corresponding to | DIN IEC 60695-11-10; |
