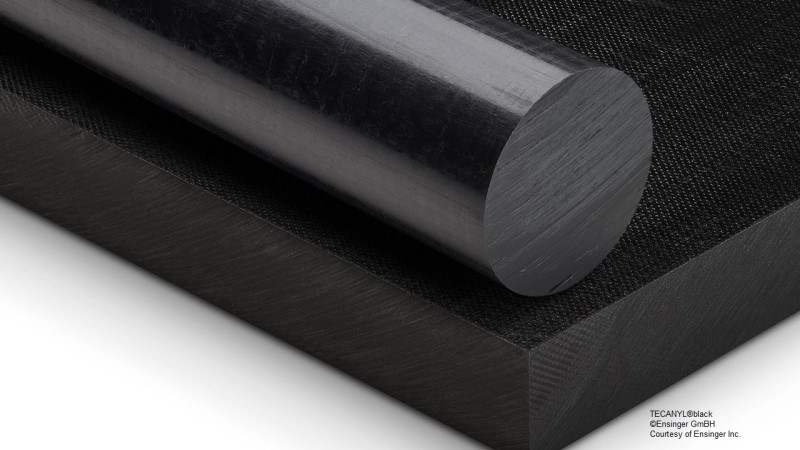

TECANYL Noryl
SKU: TECANYL black (Noryl EN 265)
X
Product Description
TECANYL PPE black, (made with Noryl® EN265) due to its inherent chemical composition, exhibits unusually low moisture absorption. Therefore, good electrical insulating properties are realized over a wide range of humidity and temperature conditions. Chemical attack from water, most salt solutions, acids and bases is also minimal with TECANYL. The addition of glass fiber reinforcement enhances both the mechanical and thermal properties of the basic TECANYL material. Made from Sabic Noryl® EN265 resin.
FACTS
Chemical Designation:
PPO (Polyphenylene oxide)
PPO (Polyphenylene oxide)
Color:
black
black
Density:
1.08 g/cm3
1.08 g/cm3
FEATURES
- Electrically Insulating
- High Strength
- Good Dimensional Stability
- High Toughness
- High Thermal Resistance
INDUSTRIES
- Conveyor Technology
- Mechanical Engineering
- Food Processing
- Precision Engineering
- Automotive Industry
- Electrical Engineering
- Home Appliances
DOWNLOADS
Mechanical Properties
| DESCRIPTION | VALUE | UNIT | CONDITION | TEST METHOD |
|---|---|---|---|---|
| Modulus of elasticity (tensile test) | 350,000 | psi | @ 73 °F | ASTM D 638 |
| Tensile strength at yield | 9,000 | psi | @ 73 °F | ASTM D 638 |
| Tensile strength at break | 9,200 | psi | @ 73 °F | ASTM D 638 |
| Elongation at break (tensile test) | 25 | % | @ 73 °F | ASTM D 638 |
| Flexural strength | 13,400 | psi | @ 73 °F | ASTM D 790 |
| Modulus of elasticity (flexural test) | 370,000 | psi | @ 73 °F | ASTM D 790 |
| Impact strength (Izod) | 3.5 | ftlbsin | @ 73 °F | ASTM D 256 |
| Rockwell hardness | 119 | @ 73 °F | ASTM D 785 | |
| Coefficient of friction | 0.32 | Static | ASTM D 3702 | |
| Coefficient of friction | 0.39 | Dynamic, 40 psi, 50 fpm | ASTM D 3702 |
Thermal Properties
| DESCRIPTION | VALUE | UNIT | CONDITION | TEST METHOD |
|---|---|---|---|---|
| Vicat softening point | 310 | F | ||
| Deflection temperature | 279 | F | @ 66 psi | ASTM D 648 |
| Deflection temperature | 254 | F | @264 psi | ASTM D 648 |
| Service temperature | 230 | F | Intermittent | |
| Service temperature | 220 | F | Long Term | |
| Thermal expansion (CLTE) | 3.3*10-5 | ininF | ASTM D 696 |
Electrical Properties
| DESCRIPTION | VALUE | UNIT | CONDITION | TEST METHOD |
|---|---|---|---|---|
| Volume resistance | 1*1017 | Ω*cm | @ 73 °F | ASTM D 257 |
| Dielectric strength | 500 | V/mil | ASTM D 149 | |
| Dielectric constant | 2.7 | @ 60 Hz, 73 °F, 50% RH | ASTM D 150 | |
| Dissipation factor | 0.0007 | @ 60 Hz, 73 °F | ASTM D 150 |
Other Properties
| DESCRIPTION | VALUE | UNIT | CONDITION | TEST METHOD |
|---|---|---|---|---|
| Moisture absorption | 0.07 | % | @ 24 hrs, 73 °F | ASTM D 570 |
| Flammability (UL94) | V1 | |||
| Flammability (UL94) | V0 |
