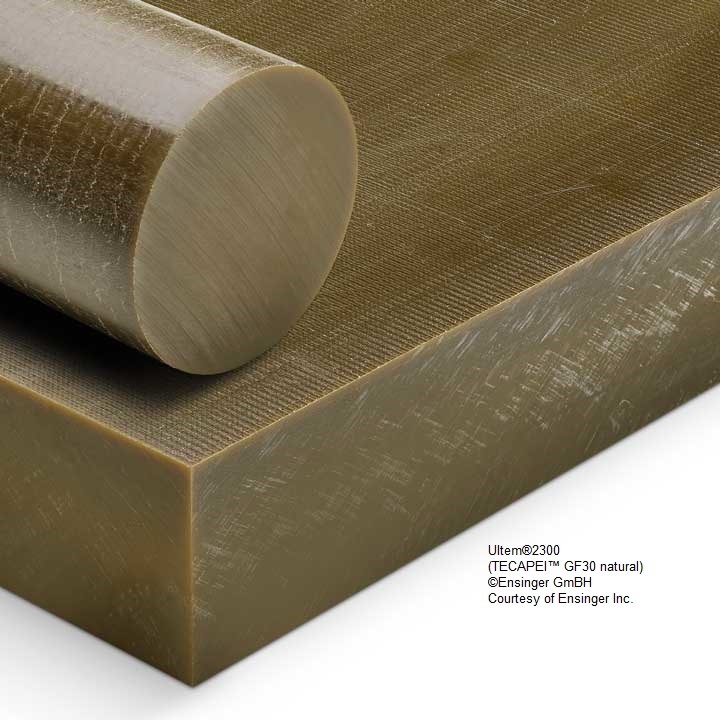

TECAPEI™ GF30 Nat (Sabic Ultem®2300 Series)
This is a special 30% glass fiber reinforced PEI, manufactured by Ensinger under the tradename TECAPEI GF30 natural. In comparison to unfilled PEI (TECAPEI natural), PEI GF30 demonstrates high rigidity, very high mechanical strength, as well as extremely good dimensional stability, and good resistance to high energy radiation. These properties make PEI with 30% glass fibers suitable for use in parts that are exposed to high static loads over long periods in high temperature conditions.
Facts
Chemical Designation
PEI (Polyetherimide)
Color
brown-beige
Density
1.51 g/cm3
Fillers
30% glass fibres
PEI (Polyetherimide)
Color
brown-beige
Density
1.51 g/cm3
Fillers
30% glass fibres
Features
- high thermal and mechanical capacity
- high dielectric strength
- excellent strength and stiffness
- excellent tensile strength
- easy to machine
- inherent flame resistance
Industries
aircraft and aerospace technology
electrical engineering
automotive industry
mechanical engineering
electrical engineering
automotive industry
mechanical engineering
Show/Hide Mechanical Properties
| Description | value | unit | condition | test method |
| Modulus of elasticity (tensile test) | 800,000 | psi | @ 73 °F | ASTM D 638 |
| Tensile strength at break | 18,000 | psi | @ 73 °F | ASTM D 638 |
| Elongation at break (tensile test) | 3 | % | @ 73 °F | ASTM D 638 |
| Flexural strength | 28,000 | psi | @ 73 °F | ASTM D 638 |
| Modulus of elasticity (flexural test) | 800,000 | psi | @ 73 °F | ASTM D 790 |
| Compression strength | 26,000 | psi | 10% strain | ASTM D 695 |
| Compression strength | 3,700 | psi | 1% strain | ASTM D 695 |
| Compression strength | 18,000 | psi | 5% strain | ASTM D 695 |
| Compression modulus | 390,000 | psi | @ 73 °F | ASTM D 695 |
| Impact strength (Izod) | 1.1 | ft-lbs/in | @ 73 °F | ASTM D 256 |
| Rockwell hardness | 110 | M Scale | ASTM D 785 | |
| Shear strength | 14,500 | psi | @ 73 °F, ASTM D732 |
Show/Hide Thermal Properties
| Description | value | unit | condition | test method |
| Deflection temperature | 414 | °F | @ 66 psi, 1/4" | ASTM D 648 |
| Deflection temperature | 409 | °F | @ 264 psi, 1/4 | ASTM D 648 |
| Service temperature | 392 | °F | short term | |
| Service temperature | 356 | °F | Long Term | |
| Thermal expansion (CLTE) | 1.1*10-5 | in/in/°F | ASTM D 696 | |
| Thermal conductivity | 1.56 | BTU-in/hr-ft2 -°F | ASTM D 2214 |
Show/Hide Electrical Properties
| Description | value | unit | condition | test method |
| Volume resistance | 3.0*1016 | Ω*cm | 1/16 | ASTM D 257 |
| Dielectric strength | 630 | V/mil | In Oil | ASTM D 149 |
| Dielectric strength | 770 | V/mil | In Air | ASTM D 149 |
| Dissipation factor | 0.0015 | % | @ 1kHz, 50% RH, 73°F | ASTM D 150 |
| Dissipation factor | 0.007 | 1 MHz, 50% RH, 73°F | ASTM D 150 | |
| Dielectric constant | 3.7 | @ 1kHz, 50% RH | ASTM D 150 | |
| Dielectric constant | 3.52 | 1 MHz, 50% RH, 73°F | ASTM D 150 |
Show/Hide Other Properties
| Description | value | unit | condition | test method |
| Moisture absorption | 0.16 | % | @ 24 hrs, 73 °F | ASTM D 570 |
| Moisture absorption | 0.90 | % | @ saturation, 73 °F | ASTM D 570 |
| Flammability (UL94) | V0 | |||
| Flammability | pass | 6 mm | FAR 25.853 |
