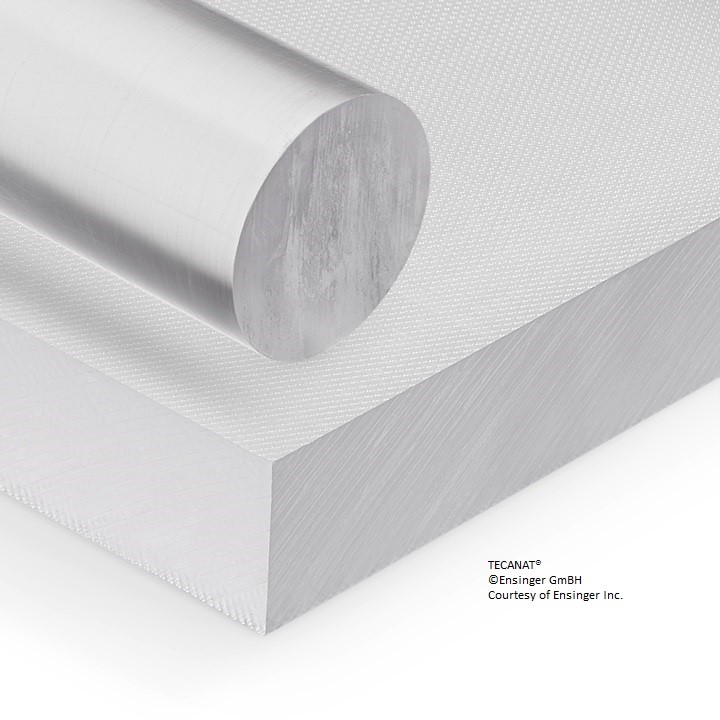

TECANAT® natural
Due to its low level of crystallinity, Ensinger's polycarbonate, marketed as TECANAT natural, has a high level of transparency. The unmodified PC is characterized by high strength, rigidity and hardness, as well as good impact strength. However, as is the case with all amorphous thermoplastics, lower chemical resistance may be a limiting factor in the material selection process.
Facts
Chemical Designation
PC (Polycarbonate)
Color
transparent
Density
1.19 g/cm3
PC (Polycarbonate)
Color
transparent
Density
1.19 g/cm3
Features
- excellent impact strength
- excellent strength and stiffness
- excellent dimensional stability
- good machinability
Industries
aircraft and aerospace technology
food engineering
food processing
cleanroom technology
packaging and paper machinery
food engineering
food processing
cleanroom technology
packaging and paper machinery
Show/Hide Mechanical Properties
| Description | value | unit | condition | test method |
| Modulus of elasticity (tensile test) | 340,000 | psi | @ 73 °F | ASTM D 638 |
| Tensile strength at yield | 9,300 | psi | @ 73 °F | ASTM D 638 |
| Elongation at break (tensile test) | 90 | % | @ 73 °F | ASTM D 638 |
| Flexural strength | 12,000 | psi | @ 73 °F | ASTM D 790 |
| Modulus of elasticity (flexural test) | 328,000 | psi | @ 73 °F | ASTM D 790 |
| Compression strength | 2,100 | psi | @1% strain, 73 °F | ASTM D 695 |
| Compression strength | 10,000 | psi | @10% strain, 73 °F | ASTM D 695 |
| Compression modulus | 245,000 | psi | @ 73 °F | ASTM D 695 |
| Impact strength (Izod) | 2.5 | ft-lbs/in | @ 73 °F | ASTM D 256 |
| Impact strength (Izod) | 65 | ft-lbs/in | unnotched | ASTM D 256 |
| Rockwell hardness | 70 (118) | @ 73 °F M Scale (R Scale) |
ASTM D 785 | |
| Shore hardness | 79 | D scale | ASTM D 785 | |
| Coefficient of friction | 0.38 | Dynamic, 40 psi, 50 fpm | ASTM D 3702 | |
| Wear (K) factor | 2500*10-10 | in³-min/ft-lbs-hr | Against Steel, 40 psi, 50 fpm | ASTM D 3702 |
| Shear strength | 9,900 | psi |
Show/Hide Thermal Properties
| Description | value | unit | condition | test method |
| Vicat softening point | 309 | °F | ASTM D 1525 | |
| Deflection temperature | 280 | °F | @ 66 psi | ASTM D 648 |
| Deflection temperature | 295 | °F | @ 264 psi | ASTM D 648 |
| Service temperature | 275 | °F | Intermittent | |
| Service temperature | 250 | °F | Long Term | |
| Thermal expansion (CLTE) | 3.8 | *10-5 in/in/°F | ASTM D 696 | |
| Specific heat | 0.30 | BTU/lb-°F | ||
| Thermal conductivity | 1.39 | BTU-in/hr-ft2 -°F | ASTM C 177 |
Show/Hide Electrical Properties
| Description | value | unit | condition | test method |
| volume resistance | 1.0*1015 | Ω*cm | @ 500V | ASTM D 257 |
| Dielectric strength | 365 | V/mil | ASTM D 149 | |
| Dissipation factor | 0.0009 | @ 60 Hz, 73 °F | ASTM D 150 | |
| Dielectric constant | 2.87 | @ 60 Hz, 73 °F, 50% RH | ASTM D 150 | |
| Dielectric constant | 2.96 | @ 1MHz | ASTM D 150 |
Show/Hide Other Properties
| Description | value | unit | condition | test method |
| Moisture absorption | 0.07 | % | @ 24 hrs, 73 °F | ASTM D 570 |
| Moisture absorption | 0.35 | % | @ saturation, 73 °F | ASTM D 570 |
| Flammability (UL94) | HB | |||
| Flammability | Self extinguishing |
