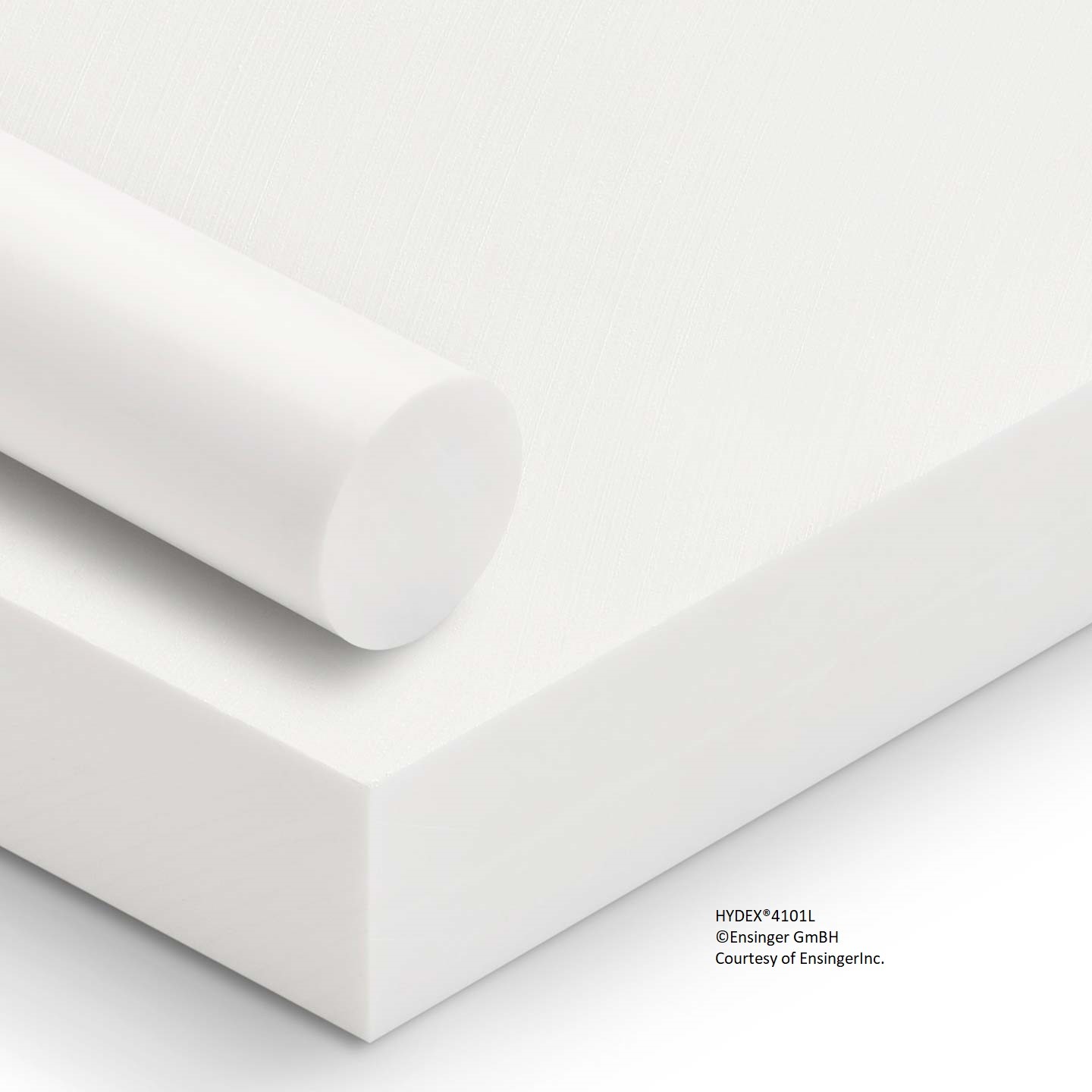

HYDEX® 4101L natural
HYDEX 4101L natural is the lubricated version of HYDEX 4101 PBT polyester. Like its un-lubricated sister resin, HYDEX 4101L is a more impact resistant polyester that is better suited to many fast paced industrial and food processing environments than other lubricated PET polyesters available. It is a food grade plastic material that can meet most agency requirements for food contact compliance, and is ideal for machined parts in food processing equipment that require a lower coefficient of friction, and higher wear properties. HYDEX 4101L has excellent resistance to typical cleaning chemicals such as chlorine and caustic solutions and has a very low moisture absorption rate.
Facts
Chemical Designation
PBT (Polybutylene terephthalate)
Color
white
Density
1.36 g/cm3
Fillers
PTFE, lubricant
PBT (Polybutylene terephthalate)
Color
white
Density
1.36 g/cm3
Fillers
PTFE, lubricant
Features
- very good chemical resistance
- resistent to cleaning agents
- low moisture absorption
- good impact strength
- high dimensional stability
- good slide and wear properties
- high stiffness
Industries
food processing
food technology
food engineering
semiconductor technology
automotive industry
printing machines
mechanical engineering
packaging and paper machinery
food technology
food engineering
semiconductor technology
automotive industry
printing machines
mechanical engineering
packaging and paper machinery
Show/Hide Mechanical Properties
| Description | value | unit | condition | test method |
| Tensile strength | 6,600 | psi | ASTM D 638 | |
| Modulus of elasticity (tensile test) | 350,000 | psi | ASTM D 638 | |
| Elongation at yield (tensile test) | 30 | % | ASTM D 638 | |
| Flexural strength | 11,500 | psi | ASTM D 790 | |
| Modulus of elasticity (flexural test) | 350,000 | psi | @ 73 °F | ASTM D 790 |
| Compression strength | 2,800 | psi | @ 73 °F, 1% strain | ASTM D 695 |
| Compression strength | 10,500 | psi | @ 73 °F, 10% strain | ASTM D 695 |
| Compression modulus | 275,000 | psi | ASTM D 695 | |
| Impact strength (Izod) | 0.90 | ft-lbs/in | ASTM D 256 | |
| Rockwell hardness | 75 (115) | M Scale (R Scale) | ASTM D 785 | |
| Coefficient of friction | 0.11 | Dynamic (vs. steel) | ||
| Coefficient of friction | 0.08 | Static (vs. steel) | ||
| Wear rate | 38*10-10 | psi-fpm | @ 2000 PV |
Show/Hide Thermal Properties
| Description | value | unit | condition | test method |
| Deflection temperature | 195 | °F | @264 psi | ASTM D 648 |
| Service temperature | 221 | °F | Long Term |
Show/Hide Other Properties
| Description | value | unit | condition | test method |
| Limiting PV | 15,700 | psi-fpm | @ 100 fpm | |
| Moisture absorption | 0.07 | % | @ 24 hrs, 73 °F | ASTM D 570 |
