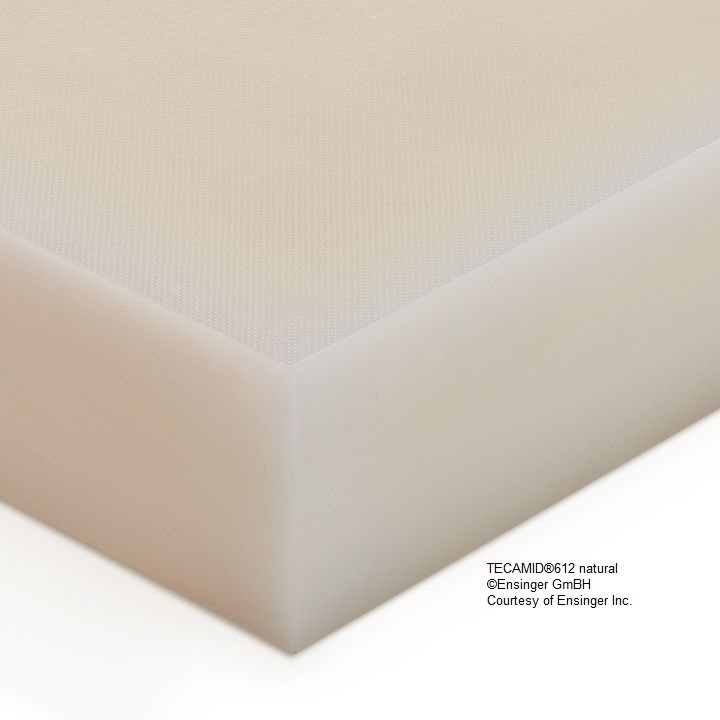

TECAMID® 612
Nylon generally has outstanding wear resistance and low frictional properties. It has very good temperature, chemical, and impact properties. However, nylon's primary weakness is a propensity to absorb moisture and thus have poor dimensional stability. TECAMID 612 has lower moisture absorption rates than nylon 66, hence superior dimensional stability.
Facts
Chemical Designation
PA 612 (Polyamide 612)
Color
natural opaque
Density
1.06 g/cm3
PA 612 (Polyamide 612)
Color
natural opaque
Density
1.06 g/cm3
Features
- low moisture absorption
- good dimensional stability
- good wear resistance
- good mechanical properties
Industries
heavy duty industry
mechanical engineering
conveyor technology
power engineering
mechanical engineering
conveyor technology
power engineering
Show/Hide Mechanical Properties
| Description | value | unit | condition | test method |
| Modulus of elasticity (tensile test) | 300,000 | psi | @ 73 °F | ASTM D 638 |
| Tensile strength at yield | 10,000 | psi | @ 73 °F | ASTM D 638 |
| Elongation at break (tensile test) | 40 | % | @ 73 °F | ASTM D 638 |
| Flexural strength | 14,000 | % | @ 73 °F | ASTM D 790 |
| Modulus of elasticity (flexural test) | 350,000 | psi | @ 73 °F | ASTM D 790 |
| Compression strength | 2,400 | psi | @ 73 °F, 1% strain | ASTM D 695 |
| Compression strength | 11,500 | psi | @ 73 °F, 10% strain | ASTM D 695 |
| Compression modulus | 275,000 | psi | @ 73 °F | |
| Impact strength (Izod) | 0.9 | ft-lbs/in | @ 73 °F | ASTM D 256 |
| Rockwell hardness | 70 (114) | @ 73 °F, M scale (R scale) | ASTM D 785 | |
| Coefficient of friction | 0.31 | Static | ASTM D 3702 | |
| Wear (K) factor | 190*10-10 | in³-min/ft-lbs-hr | Against Steel, 40 psi, 50 fpm | ASTM D 3702 |
Show/Hide Thermal Properties
| Description | value | unit | condition | test method |
| Melting temperature | 422 | °F | ASTM D 2133 | |
| Deflection temperature | 142 | °F | @264 psi | ASTM D 648 |
| Service temperature | 185 | °F | Long Term | |
| Thermal expansion (CLTE) | 5*10-5 | in/in/°F | ASTM D 696 | |
| Specific heat | 0.45 | BTU/lb-°F | ||
| Thermal conductivity | 1.53 | BTU-in/hr-ft2 -°F |
Show/Hide Electrical Properties
| Description | value | unit | condition | test method |
| Volume resistivity | 1015 | Ω*cm | ASTM D 257 | |
| Dielectric strength | 690 | V/mil | ASTM D 149 | |
| Dissipation factor | 0.02 | @ 60 Hz, 70 °F | ASTM D 149 | |
| Dielectric constant | 4 | @ 60 Hz, 73 °F, 50% RH | ASTM D 150 | |
| Dielectric constant | 3.5 | @ 1MHz | ASTM D 150 |
Show/Hide Other Properties
| Description | value | unit | condition | test method |
| Moisture absorption | 0.15 | % | @ 24 hrs, 73 °F | ASTM D 570 |
| Moisture absorption | 3.0 | % | @ saturation, 73 °F | ASTM D 570 |
| Flammability (UL94) | HB |
